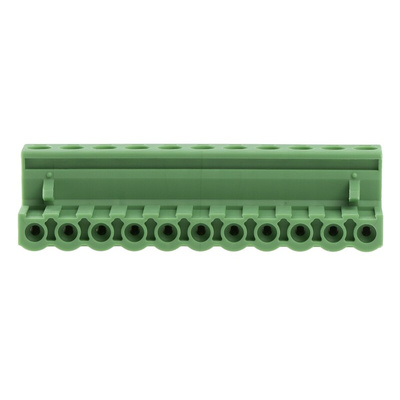

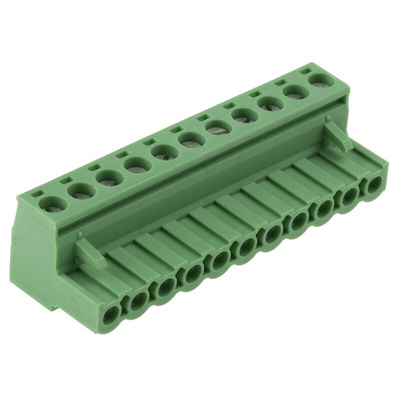

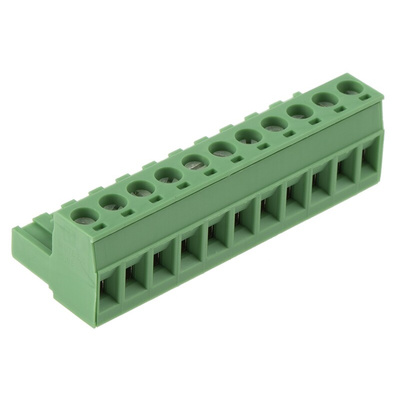

1757103, Phoenix Contact 5.08mm Pitch 11 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

Phoenix Contact PCB Connector, 11 Way, 630V Voltage Rating - MSTB 2.5/11-ST-5.08 - 1757103

Attach multiple wires to your circuit board using this 11-way PCB connector from Phoenix Contact. A pitch size of 5.08mm keeps the connector compact, to save you space. As it's pluggable, it's easy to clip in and out of your board-mounted header to help with circuit assembly and modifications.
This versatile connector accepts wire sizes between 30 and 12AWG and has a current rating of 12A for use with circuits carrying signals and power. It's also possible to connect two conductors, giving you greater flexibility in your setup. Wires are secured with screw terminals, for a straightforward connection, while tension sleeves reduce wire strain. Connections are reliable thanks to copper-alloy conductors. The unit's housing is made from mechanically strong and insulating polyamide to keep connections protected. This durable material is resistant to heat and chemicals, making it suitable for industrial automation and process control applications.

• Low temperature rise to help keep electrical circuits safe
• UL94-V0 flammability rating means burning stops in up to 10 seconds
• Compatible with headers and bridges in COMBICON MSTB connection system range for custom-building of equipment
• Universal connection style ensures it's usable worldwide

Datasheet 1757103

Line Drawing - 1757103
