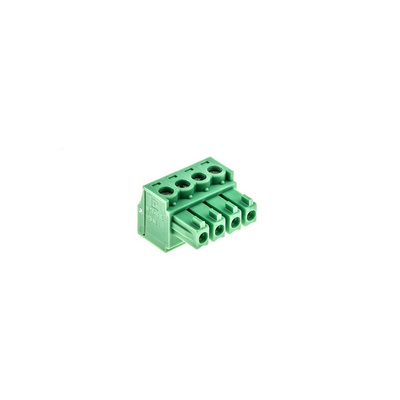

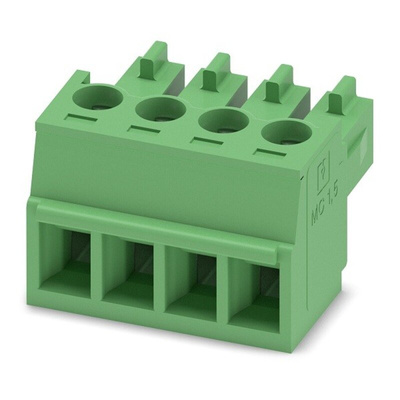

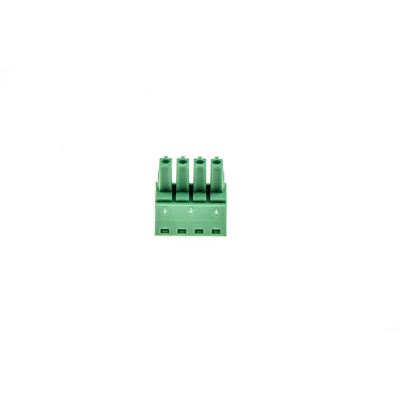

1803594, Phoenix Contact 3.81mm Pitch 4 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact Pluggable Terminal Block, 320V Voltage Rating, 8A Current Rating - MC 1,5/ 4-ST-3,81 - 1803594

Make and break electrical links in a flash with this pluggable terminal block from Phoenix Contact. Its socket contacts make electrical installation, maintenance and troubleshooting efficient. To simplify your PCB layout, the unit handles up to four connections in a space-saving body that measures just 16.1 (L) x 16.03 (W) x 11.1mm (H).
Termination is a piece of cake – simply put a wire into the screw terminal and tighten the fastener. An integrated tension plate holds conductors firmly in place to prevent accidental disconnections in vibrating conditions. As it's made of robust nylon, the block protects the contacts against damage and external electrical interferences to boost signal clarity. Thanks to a 320V voltage rating, this is a safe option for medical equipment, industrial systems and aerospace applications.

Features & Benefits

• EN-VDE approval assures you the unit has passed quality and safety testing
• Self-extinguishing material prevents the spread of fire
• Accommodates 30 to 14AWG conductors for wide compatibility
• Takes challenging temperatures from -40°C to +70°C in its stride

Approvals

UL (E60425); CSA (LR13631)

UL E60425
