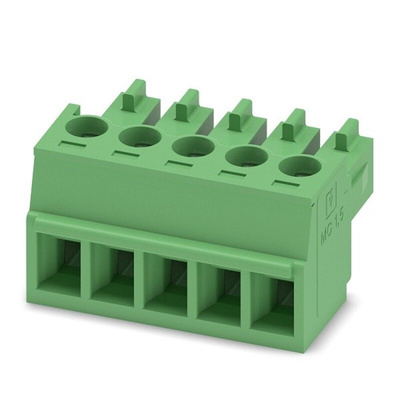

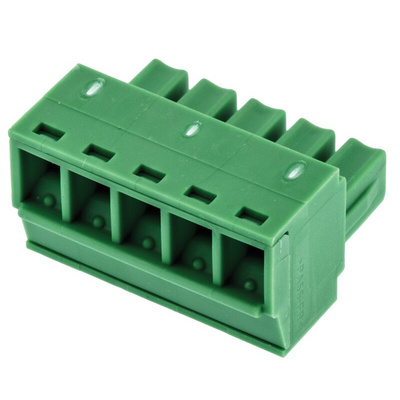

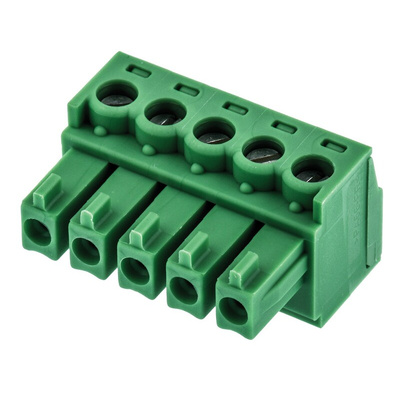

Phoenix Contact Pluggable Terminal Block, 320V Voltage Rating, 2.5kV Surge Voltage Rating - MC 1,5/ 5-ST-3,81 - 1803604
On the hunt for a fuss-free way to make or break connections? Seek out this pluggable terminal block from Phoenix Contact. It's a two-part modular component that lets you insert and remove a plug-in mating connector without using any tools. This saves time and effort during installation, maintenance and troubleshooting. To simplify your PCB layout, the unit handles up to five conductors. Compact dimensions of 16.1 (L) x 19.84 (W) x 11.1mm (H) take up little space on a crowded circuit board.
Thanks to screw terminals, it's a cinch to wire the block up – just put a stripped wire into the socket and tighten the screw. An integrated tension sleeve secures your conductor to prevent accidental disconnection that could lead to service interruptions, even in vibrating conditions.
Self-extinguishing nylon construction makes this a safety-boosting option. With a 320V voltage rating, it has the muscle to handle your demanding industrial, medical and aerospace operations.
Features & Benefits
• Highly conductive copper-alloy contacts for optimal signal transfers
• EN-VDE certification indicates the block has passed electrical quality and safety testing
• Takes 28 to 16AWG wires sizes for broad compatibility
Approvals
UL (E60425); CSA (LR13631)
Техническая спецификацияUL E60425
Datasheet 1803604

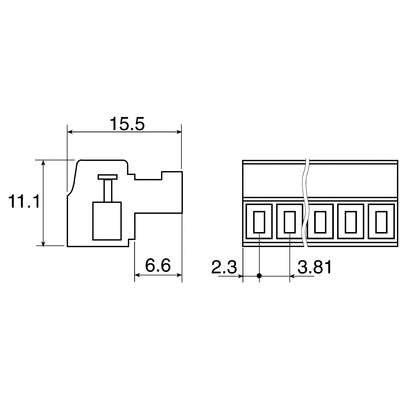

Line Drawing - 1803604
Datasheet - 1803604
