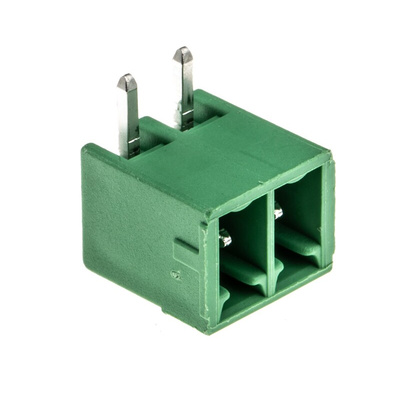

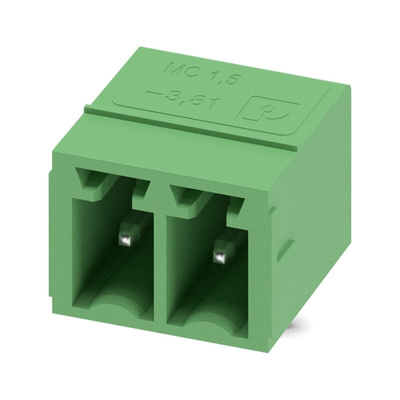

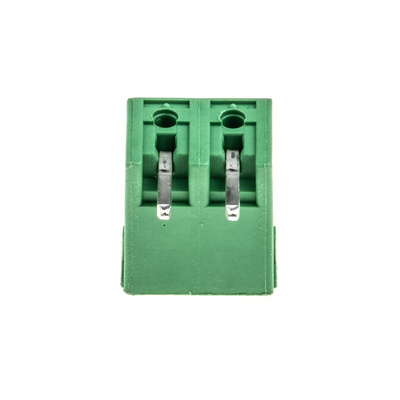

1803277, Phoenix Contact 3.81mm Pitch 2 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination

Phoenix Contact Pluggable Terminal Block, 8A Current Rating, PBT Housing - MC 1,5/ 2-G-3,81 - 1803277

Keen to connect new devices to your PCB system? Slot them into this Phoenix Contact pluggable terminal block. It accepts a plug-in connector (220-4658), so you can complete circuits with no need for tools. Thanks to a standard 3.81mm pitch, it's widely compatible. Highly conductive tin-plated copper pins keep signals flowing freely to support smooth performance. With its right-angled shape, the module's a sure fit for making connections in compact setups.
There's no need to worry about installation, as the block's through-hole mounting method achieves a secure board connection in a snap. Thanks to its insulating PBT casing, your exposure to hazardous loads is minimised, for safe handling. Taking current up to 8A means the connector is a safe bet for demanding power distribution processes. As it's polarised, there's no need to worry about damage caused by mis-mating.

Features & Benefits

• Handles 25 connection cycles to deliver long-term service
• Protected against surge voltages up to 2.5kV to block damage from electrical glitches
• UL 94-V0 flammability rating indicates the material stops burning in less than 10 seconds to prevent the spread of flames
• Tested to IEC 60068-2-6:2007-12 standards for effective vibration protection

Approvals

UL (E60425); CSA (LR13631)

UL E60425

Datasheet 1803277

Line Drawing - 1803277
