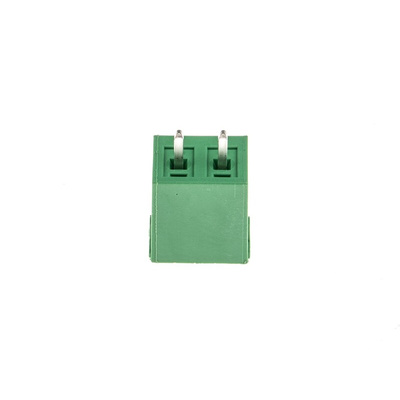

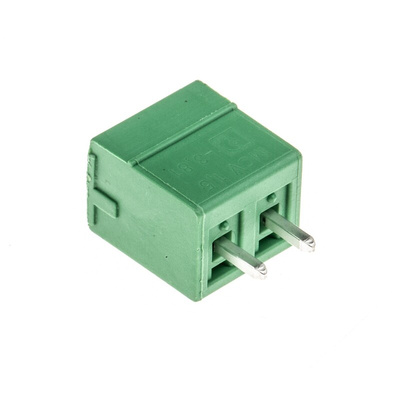

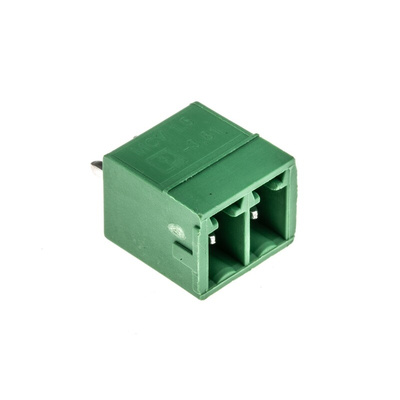

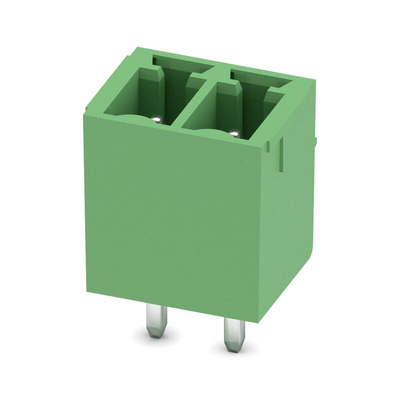

1803426, Phoenix Contact 3.81mm Pitch 2 Way Pluggable Terminal Block, Header, Cable Mount, Solder Termination

Phoenix Contact Pluggable Terminal Block, Male Gender, 8A Current Rating - MCV 1,5/ 2-G-3,81 - 1803426

Bank on reliable connections in your board-mounted system with this pluggable terminal block from Phoenix Contact. Thanks to its 8A current capacity, it tackles standard electrical loads with ease. The copper alloy pins are highly conductive, so you get signalling that's fast and efficient.
This block comes housed in insulating PBT, which means it's safe to handle without the risk of shocks. Thanks to its compact 3.81mm pitch, it's a flexible fit for busy board systems. A lifespan of at least 25 mating cycles makes it a reliable choice that can be reused when you want to rejig your setup.
With its handy push-in connection, this component quickly connects to a plug (such as 220-4658) for added convenience. You can mount it by soldering it to a PCB, which keeps connections secure even in vibrating applications.

Features & Benefits

• Polarised ports protect connections against misalignment
• Inflammability rating of UL 94-V0 means burning stops in under 10 seconds if there's a fire
• Rated surge voltage of 2.5kV, so it stands up to electrical faults
• Tin-plated contacts are resistant to corrosion in humid environments

Approvals

UL (E60425); CSA (LR13631)

UL E60425

Datasheet 1803426

Datasheet 1803426

Line Drawing - 1803426
