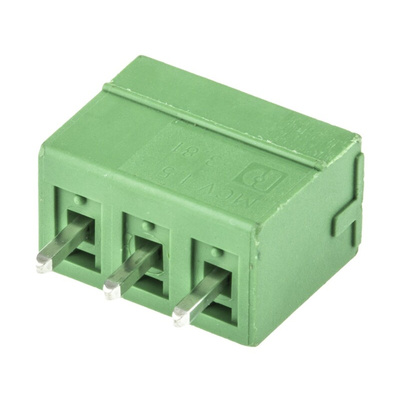

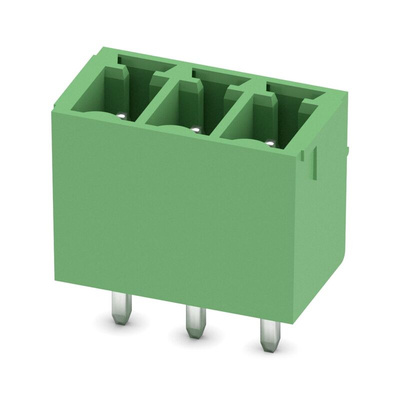

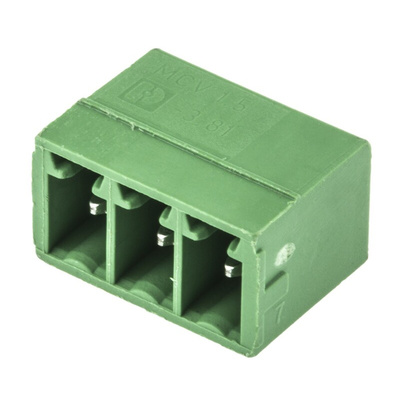

1803439, Phoenix Contact 3.81mm Pitch 3 Way Pluggable Terminal Block, Header, Wave Soldering, Solder Termination

Phoenix Contact Pluggable Terminal Block, 8A Current Rating, 300V Voltage Rating - MCV 1,5/ 3-G-3,81 - 1803439

Keen to create a wire-to-board link you can simply slot in and pull out? Choose this pluggable terminal block from Phoenix Contact. Installation is a walk in the park – just position the unit on your PCB and solder it in place. As it accommodates up to three circuits, it simplifies your assembly. Plus, with a 3.81mm pitch and slimline 12.82mm width, it's a neat fit on circuit cards where space is limited.
As its housing is made from robust PBT construction, this is a tough choice that holds up against wear and chemical damage in challenging environments. Subject to the derating curve, you can count on glitch-free performance in temperatures falling to -40°C and rising as high as +100°C. Weighing in at only 0.81g, this piece adds minimal strain to your industrial controls, computer assemblies or robotics projects.

Features & Benefits

• Highly conductive copper alloy contacts ensure crystal-clear signal transfers
• UL 94-V0 compliance assures you that burning stops in 10 seconds to limit the spread of flames
• 300V rating handles the challenges of high-voltage industrial applications
• VDE approval indicates module has passed safety and quality tests for electrical components

Approvals

UL (E60425); CSA (LR13631)

UL E60425

Datasheet

Line Drawing - 1803439
