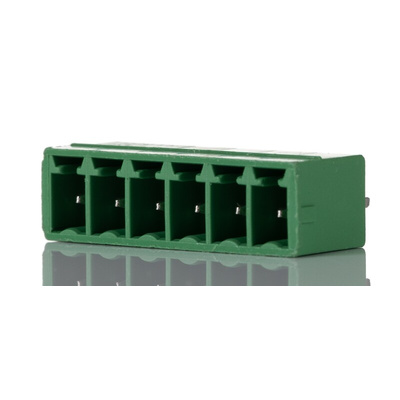

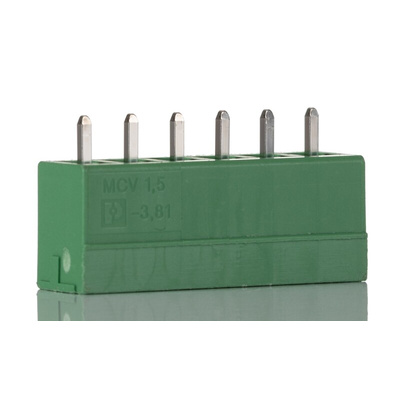

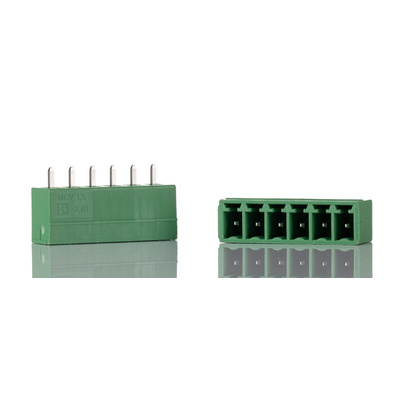

1803468, Phoenix Contact 3.81mm Pitch 6 Way Pluggable Terminal Block, Header, Solder Termination

Phoenix Contact Pluggable Terminal Block, 8A Current Rating, Pack of 5 - MCV 1,5/ 6-G-3,81 - 1803468

Upgrade the connectivity of your board-mounted setup with this pluggable terminal block from Phoenix Contact. As it can be soldered straight onto a PCB and links with a connector (such as 220-4692) using plug-in mating, installation is simple. With its tin-plated copper alloy contacts, the unit efficiently carries power to achieve reliable electrical connections. Support for loads up to 8A ensures it keeps up with intense power distribution tasks.
Don't worry about finding equipment to fit the block, as its industry-standard 3.81mm pitch fits commonly used connectors without a hitch. Thanks to hard-wearing PBT housing, it resists impact and is safe to use in demanding settings. Space for six circuits makes this a handy hook-up point for multiple connections simultaneously. By shrugging off surge voltages of up to 2.5kV, the block cuts the risk of damage caused by power faults.

Features & Benefits

• Meets IEC 60512-3-1 standards for effective electrical insulation
• Lifespan of 25 mating cycles to provide long-lasting connectivity
• Safe for use in temperatures between -40°C and +100°C
• Flammability rating of UL 94-V0 indicates it quickly self-extinguishes in the event of a fire to prevent the spread of flames

Approvals

UL (E60425); CSA (LR13631)

1803468 Datasheet

UL E60425

1803468 Drawing
