M/146016/M/1000, Norgren Double Acting Rodless Actuator 1000mm Stroke, 16mm Bore

IMI Norgren Rodless Actuator, Double-Actionng Type, 16 Bit Resolution - Lintra Series - M/146016/M/1000

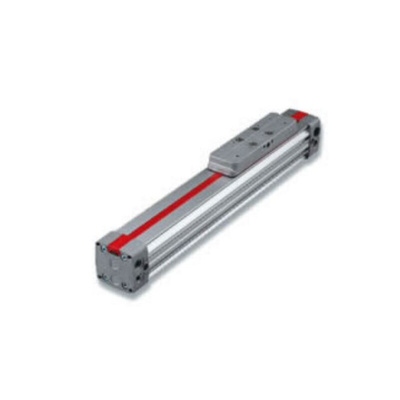

Need a device to repeatedly move workpieces in straight lines? Choose this rodless actuator from IMI Norgren to keep your operations on track. It's a sliding mechanism without a piston, which means it reliably shoulders the load on its carriage. A standard 16mm bore size makes the unit highly compatible with common pneumatic setups, so it slots easily into place. NBR seals keep the pressure constant and shrug off industrial contaminants to minimise maintenance.

Features & Benefits

• 1000mm stroke delivers long-range output for demanding applications
• Aluminium material resists impact, abrasion and corrosion to support a long service life
• Inbuilt short-circuit protection prevents electrical surges from damaging your equipment
• Performs reliably in a temperature range between -30°C and +80°C

Applications

• Factory automation
• Mining and minerals processing
• Packaging lines

What media can I use with this rodless actuator?

This rodless actuator is a versatile option as it's compatible with lubricated, non-lubricated or filtered compressed air.

Is this device protected from dust and debris?

An IP67 rating indicates it's completely dust-tight and withstands temporary immersion in water up to a depth of one metre.

Datasheet - M/146016/M/1000

Brochure - Pneumatic Rodless Cylinders

Catalogue - World Class Motion and Fluid Control Solutions
