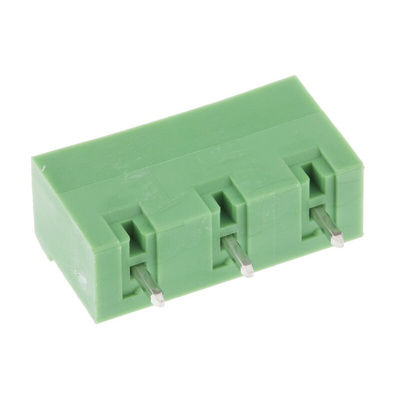

1766783, Phoenix Contact 7.62mm Pitch 3 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination

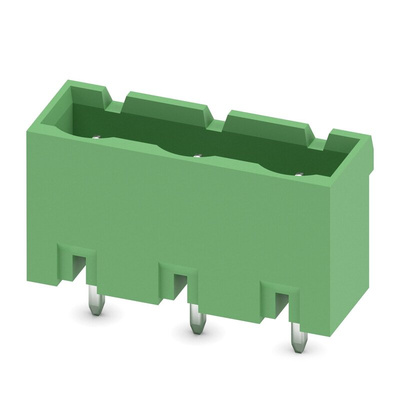

Phoenix Contact PCB Header, 12A Current Rating, 7.62mm Pitch - GMSTBVA 2,5/ 3-G-7,62 - 1766783

When things get down to the wire in your industrial tasks, choose this PCB header from Phoenix Contact to make circuit connections. The wire-to-board connector accommodates up to three links, so it's a versatile piece of kit. Thanks to its compact dimensions of 8.6 (L) x 22.86 (W) x 15.9mm (H), it's a sure fit for crowded PCBs.
The PA housing is resistant to wear and impact, so it stands up to use in harsh environments. It also provides effective insulation to keep you and your equipment safe and sound from electrical hazards. Solder termination ensures your wiring stays securely in place, helping to minimise the risk of disconnection and downtime.
To make sure signals are crystal clear, the tin-plated copper-alloy contacts are highly conductive. They're also resistant to corrosion, so won't degrade in damp settings. Use this product for consumer electronics, medical equipment and industrial control systems.

• Voltage rating of 630V for use in medium-duty applications
• IEC 60512-5-1:2002-02 approval shows it can carry its rated current with a minimal rise in temperature
• IEC 60512-3-1:2002-02 certification for effective insulation resistance

Phoenix Contact COMBICON 7.62mm Two Part Terminal Blocks

Approvals

UL94V-0

Connector Terminal 7.62mm Pitch Vertical Header Drawing

Datasheet - 1766783
