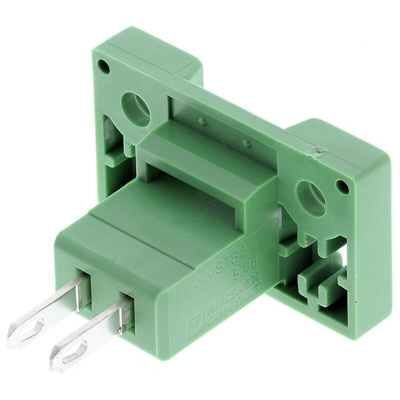

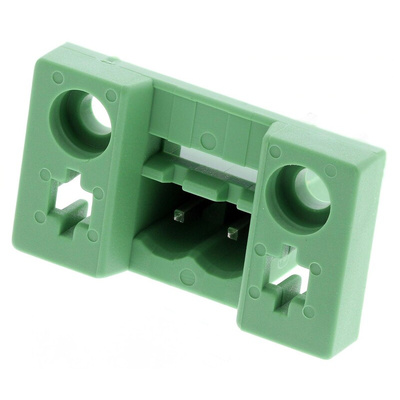

0707248, Phoenix Contact 5.08mm Pitch 2 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

Phoenix Contact Pluggable Terminal Block, Tin-Plated Copper Alloy Contacts, 12A Current Rating - DFK-MSTB 2,5/ 2-G-5,08 - 0707248

Add extra connectivity to your control panel with this pluggable terminal block from Phoenix Contact. It works with a plug (such as 189-6010) to make connections in a flash. Thanks to the block's tin-plated copper alloy contacts, your connections are well protected against corrosion to ensure long-lasting conductivity. As it has a standard 5.08mm pitch, this is a widely compatible option that's easy to plug in and remove.
For versatility, the block supports solder and slip-on mounting. Electrical faults don't pose a problem, as it handles surge voltages up to 4kV to cut the potential for equipment damage. An insulating PA body means you can handle the unit without risking an electric shock. Dimensions of just 30.48 (W) x 20.2 (H) x 17.5mm (D) ensure it fits easily into a small cabinet.

Features & Benefits

• Safe for use in challenging temperatures between -40°C and +100°C
• Supplied in a pack of five units to keep you stocked up
• Passes IEC 60664-1 tests, indicating it provides effective insulation around equipment that has a maximum rated voltage of 1,000V AC and 1,500V DC

Datasheet 707248

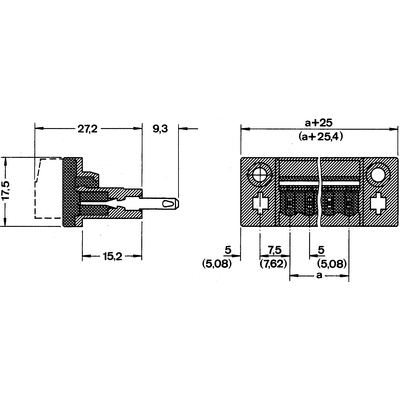

0707248 Drawing

Datasheet - 0707248

Line Drawing - 0707248
