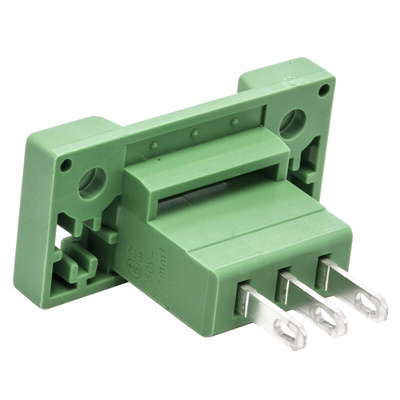

0707251, Phoenix Contact, 3 Way, Nylon Non-Fused Terminal Block, 320 V

2205027
Номер производителя: 0707251Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
798.00 руб. (С НДС) *
Количество 5+ 75+ 250+ 500+ 1000+
Цена 798.00 руб. 711.00 руб. 660.00 руб. 621.00 руб. 582.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DFK-MSTB Feed-through PCB connectors - Phoenix Contact

The DFK-MSTB series from Phoenix contact are brilliant PCB connectors that are feed-through. These PCB connectors allow you to create a pluggable connection through a housing wall and it can either be a permanent solution or a temporary, thanks to pin design. The DFK-MSTB offer you maximum flexibility when it comes to designing and one header features multiple different connection technologies to allow you to be versatile. Not to mention, DFK-MSTB series have a nominal current of 12 A, a pitch of 5.08mm for maximum compatibility and a nominal voltage of 320 V.

These connectors are made from a durable green polyamide housing with the solder/slip-on pins being a tin-plated copper.

Features and benefits:

  • Temporary or permanent solution thanks to the solderable/slip-on pins

  • Multiple different connection technologies for ultimate versatility

  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through

  • MSTB 2.5 - ST-5.08 & MSTBT 2.5 - ST-5.08 can be used in conjunction with these devices

  • Terminals rated at 12A / 320V (Class III/2)

0707251

The 0707251 version of the DFK-MSTB series is a 3-way version. It contains all the same, great specifications as above, however, just features 3 blade pins. As a result, it also contains 3 input pins too.

Техническая спецификация
pdfDatasheet 707251
pdf0707251 Drawing
Количество путей:
3
Концевая заделка:
Припой
Материал:
Нейлон
Номинал тока:
12A
Номинальное напряжение:
320 В
Плавленый:
Нет
Серия:
CLASSIC COMBICON DFK-MTSB
Тип монтажа:
Крепление на панель
Шаг:
5.08мм
