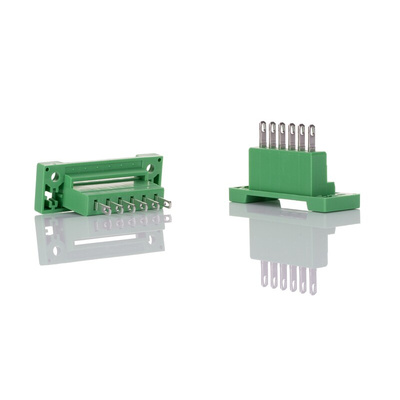

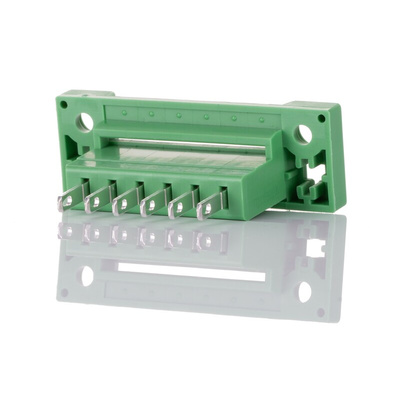

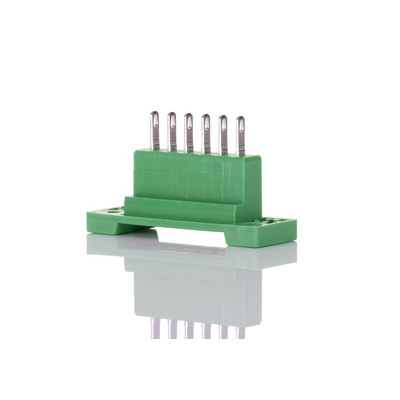

0707280, Phoenix Contact 5.08mm Pitch 6 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

Phoenix Contact Non-Fused Terminal Block, 4kV Rated Surge Voltage, Single Row - DFK-MSTB 2,5/ 6-G-5,08 - 0707280

Use this terminal block from Phoenix Contact to make multiple wired connections on your PCBs. With its 6-way design, it lets you control up to 6 circuits at the same time, simplifying your wiring. Highly conductive copper alloy contacts deliver a reliable connection. These contacts are tin-plated for enhanced resistance to corrosion, so you can rest assured of long-term performance in harsh conditions. Solder pins are on hand to establish a secure link with your board.
The block's polyamide housing serves as an insulator to protect you from electric shocks. To prevent accidental short circuits, its contacts have a safe spacing of 5.08mm between them. As it can resist up to 4kV of surge voltage without damage, this is a suitable option for heavy-duty applications. You'll find it used in the consumer electronics industry, as well as in laptops and mobile devices.

Features & Benefits

• Current rating of 12A for use in high-current settings
• UL94V2 rating shows that it's flame-retardant and stops burning in 60 seconds or less in the event of a fire
• Compact dimensions of 17.5 (L) x 50.8 (W) x 29.5mm (H) for installation in setups with limited space

CONNECTEUR

Line Drawing - 0707280
