0707316, Phoenix Contact 5.08mm Pitch 10 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

DFK-MSTB Feed-through PCB connectors - Phoenix Contact

The DFK-MSTB series from Phoenix contact are brilliant PCB connectors that are feed-through. These PCB connectors allow you to create a pluggable connection through a housing wall and it can either be a permanent solution or a temporary, thanks to pin design. The DFK-MSTB offer you maximum flexibility when it comes to designing and one header features multiple different connection technologies to allow you to be versatile. Not to mention, DFK-MSTB series have a nominal current of 12 A, a pitch of 5.08mm for maximum compatibility and a nominal voltage of 320 V.

These connectors are made from a durable green polyamide housing with the solder/slip-on pins being a tin-plated copper.

Features and benefits:

• Temporary or permanent solution thanks to the solderable/slip-on pins


• Multiple different connection technologies for ultimate versatility


• Cable connection on the inside of the device enables flexible positioning of the panel feed-through


• MSTB 2.5 - ST-5.08 & MSTBT 2.5 - ST-5.08 can be used in conjunction with these devices


• Terminals rated at 12A / 320V (Class III/2)

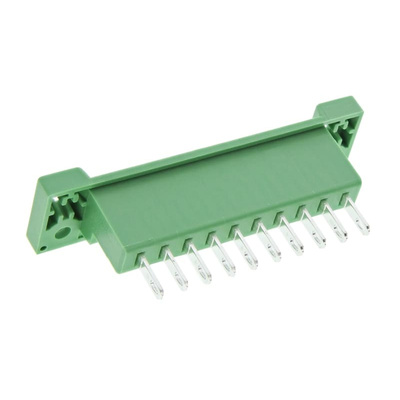

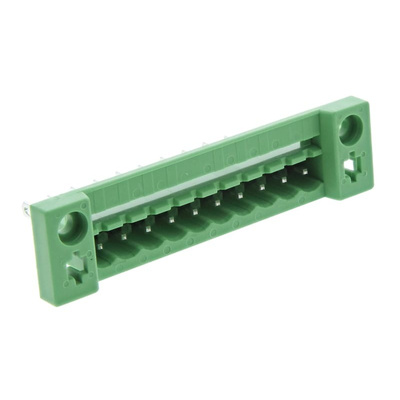

Phoenix Contact Feed-through PCB Connector, 12A, 10 Ways - DFK-MSTB 2.5/10-G-5.08 - 0707316

Use this conductor from Phoenix Contact to send and receive signals through your PCB (printed circuit board). Durable polyamide housing, in Phoenix Contact's signature green, holds 10 contacts made of tin-plated copper-alloy material for maximum conductivity.
The unit can either be soldered permanently onto the PCB or plugged in temporarily with slip-on pins. Its compact design makes it useful in applications where space is at a premium, and a cable connection on its inside allows for flexible placement of the panel feed-through. As it accepts a broad range of wire sizes from 24 to 12AWG (American Wire Gauge), this component is a versatile choice.
Thanks to a wide operating temperature range of -40°C to +70°C, this connector can withstand extreme conditions. It's used for a range of applications, including sound equipment and commercial wiring.

• Non-fused component for flexibility in your bespoke setup
• Panel mounting type for easy installation
• Solder eyelet termination method for reliable connections
• Compact dimensions of 17.5 (L) x 71.12 (W) x 29.5mm (H)
• Underwriters Laboratories (UL) 94 flammability rating V-2 meaning burning stops within 30 seconds
