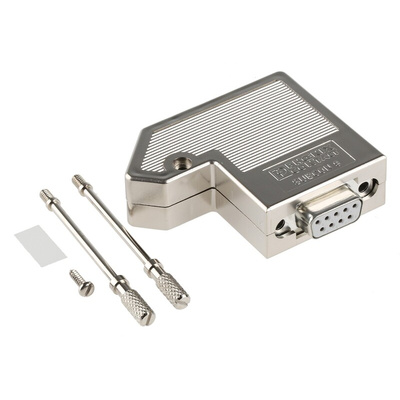

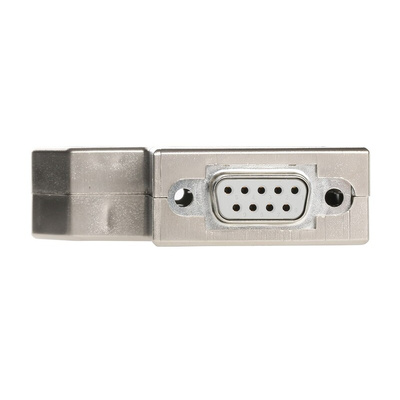

2761499, Phoenix Contact SUBCON 9/F-SH 9 Way Right Angle Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 50V DC Voltage Rating, 100mA Current Rating - SUBCON 9/F-SH - 2761499

Are challenging connections driving you around the bend? Choose this D-sub connector from Phoenix Contact to take the strain out of wiring jobs. It has a right-angled body orientation to help you establish links when you can't or don't want to go in a straight line. Simply flip the device over to send your cable to the left or right. A standard 2.77mm pitch gives you plenty of room to play with when adding wires. Nine copper-alloy contacts mean resistance is minimal to make light work of signal transfer.

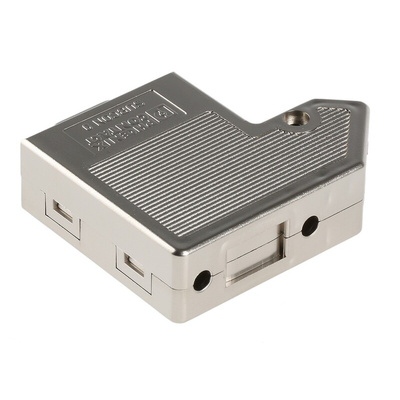

This device is protected from impact by a robust metal-plated ABS housing, so it shrugs off the challenges of industrial conditions. An IP20 rating means you can trust it's touch-proof and resistant to tools or wires bigger than 12.5mm.

Features & Benefits

• Performs reliably in a wide temperature range between -20°C and +75°C
• Compact dimensions of 56.4 (L) x 16 (W) x 55mm (D) mean it's space-efficient
• Light 49.1g weight doesn't add excess load to your setup
• Withstands over 200 mounting cycles and has a 6,706-year mean time between failures, so delivers long-term performance

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets

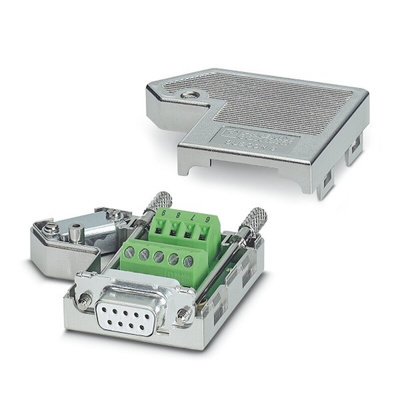

Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Datasheet 2761499

Datasheet 2761499

Datasheet - 2761499

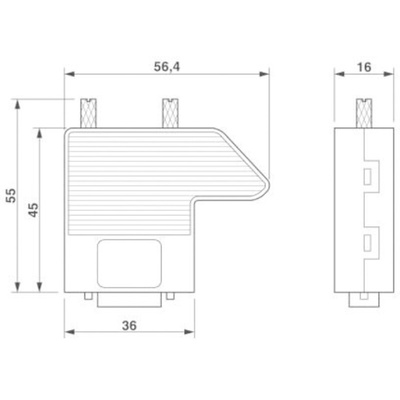

Line Drawing - 2761499
