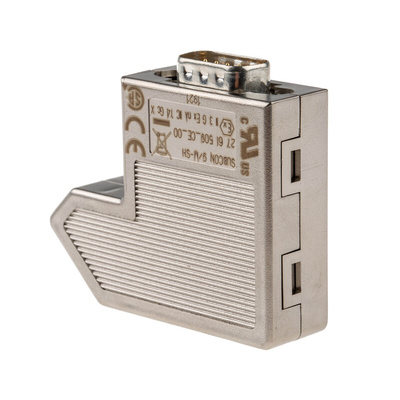

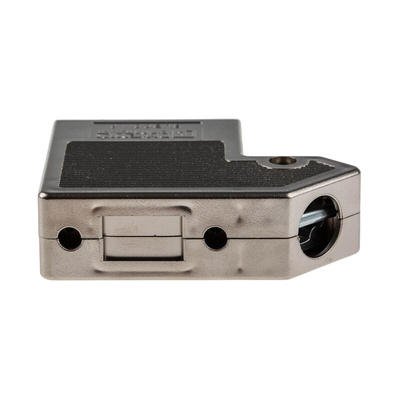

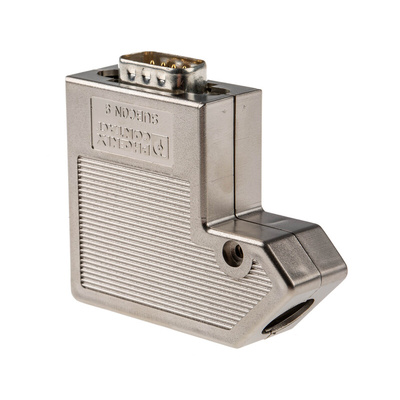

2761509, Phoenix Contact SUBCON 9/M-SH 9 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 1A Contact Current, 50V Voltage Rating - SUBCON 9/M-SH - 2761509

Need to add plug-and-play capability to your PCB? Install this D-Sub connector from Phoenix Contact. As it lets you insert and withdraw a VGA cable up to 200 times, it's ideal for stationary systems. The internal connection unit can be rotated to accept cables from the left or the right so it's a flexible solution to suit your setup.
The nine contacts are made of highly conductive copper to deliver crystal-clear transmissions. Thanks to the ABS housing, the connection is fully insulated to prevent EMI and leaks.
With a mean time to failure of 155 years – even working at total capacity – this unit's dependable around the clock. An IP20 rating means it's touch-proof for shock-free handling. You'll find devices like this commonly used in AV equipment, gaming devices and computers.

Features & Benefits

• Wide operating temperature range between -20 °C and +75°C

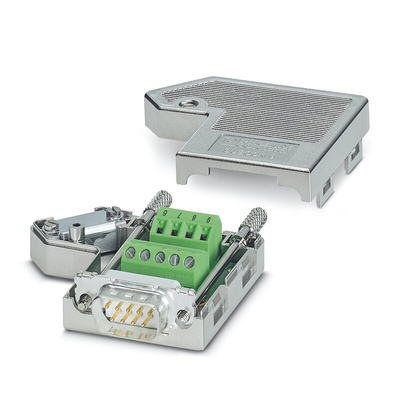

• Screw connection makes wiring simple
• Accepts wires between 16 and 26AWG, so it's a versatile choice
• Compact dimensions of 16 (W) x 56.5 (L) x 55mm (H) saves space on a PCB
• Copper contacts are resistant to corrosion in humid areas

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
