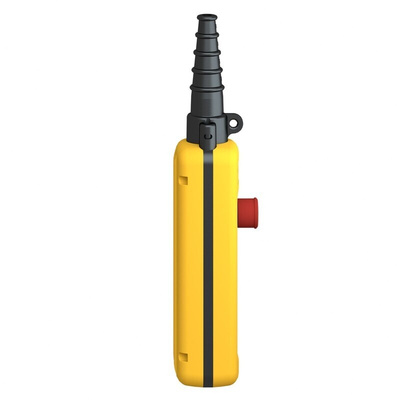

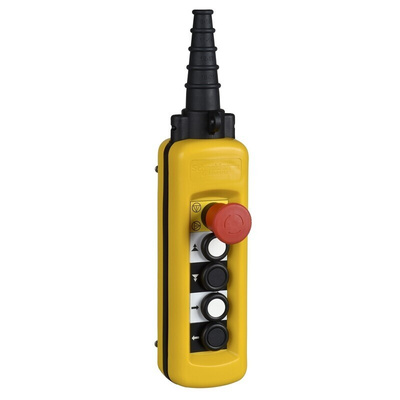

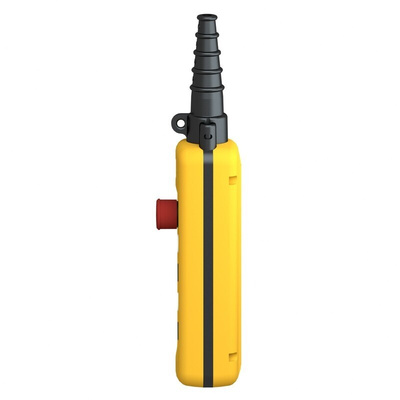

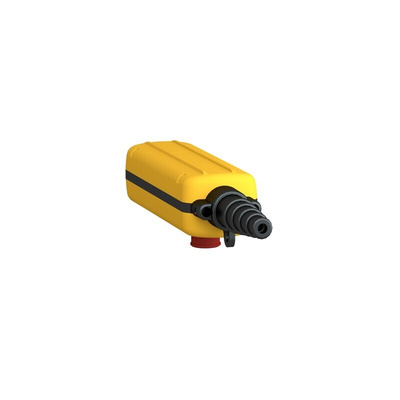

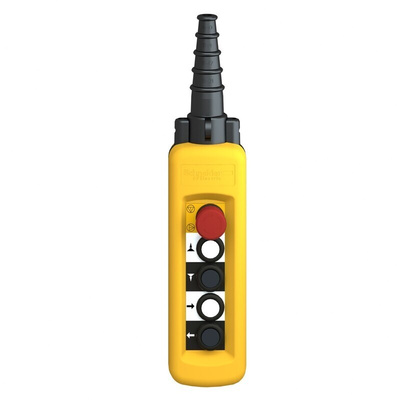

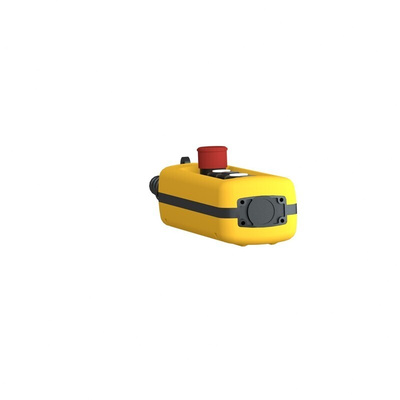

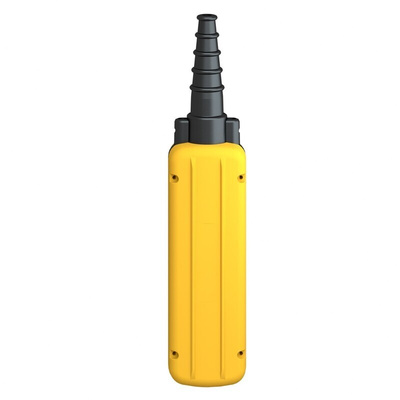

XACA4913, Schneider Electric 1 NC + 2 NO Push Button Pendant Station

Schneider Electric Push Button Pendant Station, 4 Push Buttons, 675g Weight - XAC Series - XACA4913

Looking for a reliable way to control a two-speed hoist motor? Use this push button pendant station from Schneider Electric. The handheld device has four easy-to-use and clearly marked buttons used for safely controlling the movement of machine parts. As it has a rubber emergency stop button, it's especially suited for use in hazardous industrial processes. The unit's mechanical durability is 1,000,000 cycles, so you can rely on its long service life.

Features & Benefits

• Overvoltage category class II rating for protection from voltage surges
• Wide operating temperature range between -25°C and +70°C for use in demanding conditions
• Polypropylene enclosure is resistant to chemical damage
• IP65 rating indicates it's dustproof and protected against water projected from a nozzle

Applications

• Warehouses
• Automotive servicing
• Machine shops
• Manufacturing facilities

How are the contacts in this unit configured?

The four push buttons have a 1NC/2NO configuration, while the stop button's contact is NC. This station's contacts are designed for staggered and slow-break operations.

Does this push button pendant station come with short-circuit protection?

Yes. For safety, the component has a short-circuit protection of 10A via a type gG cartridge fuse.

Datasheet-XACA4913

Catalogue - Pendant Control Stations

Instruction Sheet - XACA4913

Product Environmental Profile
