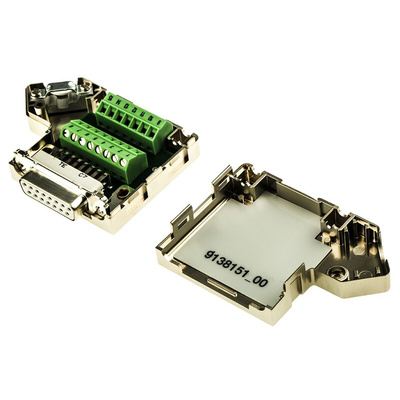

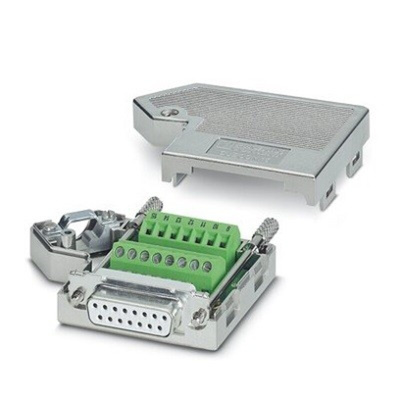

2761596, Phoenix Contact SUBCON 15/F-SH 15 Way Right Angle Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 50V DC Voltage Rating, 15 Contacts - SUBCON 15/F-SH - 2761596

Grab this D-sub connector from Phoenix Contact to turn a corner in your industrial wiring setup. The unit's ideal for making connections that need to run parallel to a wall or machine, thanks to its 90° body orientation. Compatibility with Modbus interfaces makes it a versatile option.
As it comes with integral EMC protection, you can be sure residual electromagnetic activity won't disrupt your workflow. Warm and damp environments are no problem for this component, which is comfortable working in a humidity range between 10 and 95%.
The connector's metal-plated ABS housing means this product is durable and tough enough to handle heavy-duty settings. Knurled screws that can be tightened by hand mean assembly is a breeze in the field, with no need for specialist equipment.

Features & Benefits

• 2.77mm pitch gives plenty of room for wire installation
• Withstands more than 200 insertion and withdrawal cycles for longevity

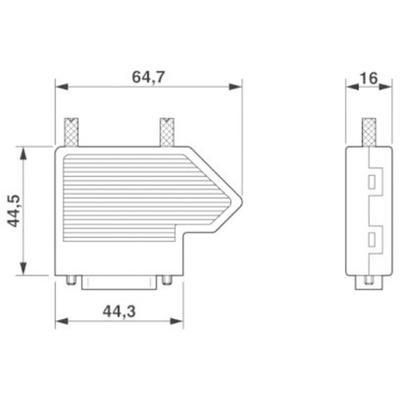

• Compact dimensions of 64.7 (L) x 16 (W) x 44.5mm (D) make it space-efficient
• Reliable performance in temperatures between -20°C and +75°C
• IP20 rating means it's touch-proof and resists objects bigger than 12.5mm

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
