2761606, Phoenix Contact SH Series, Right Angle, Male, 15 Way, Screw Terminal D-sub Connector, Разъем

Phoenix Contact SUBCOM Screw Terminal D-Sub Connectors

SUBCON 15/M-SH

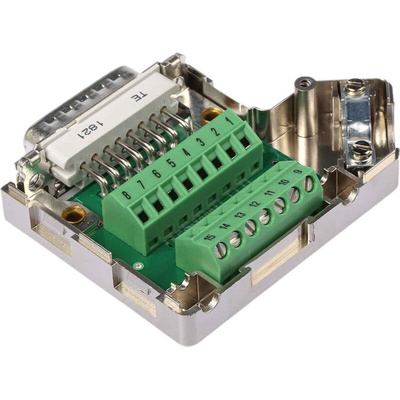

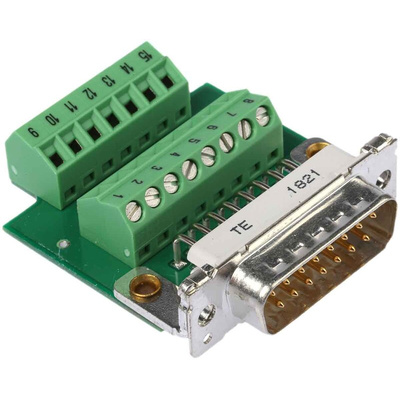

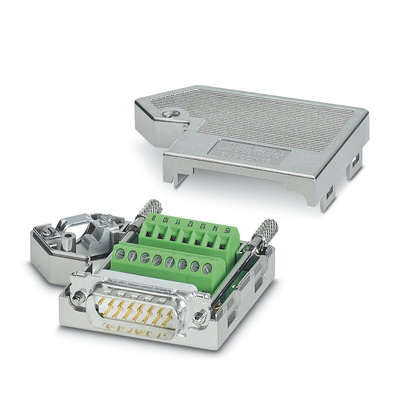

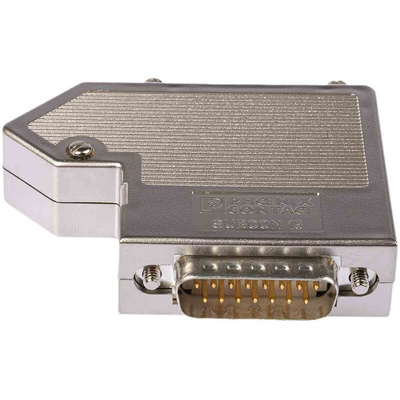

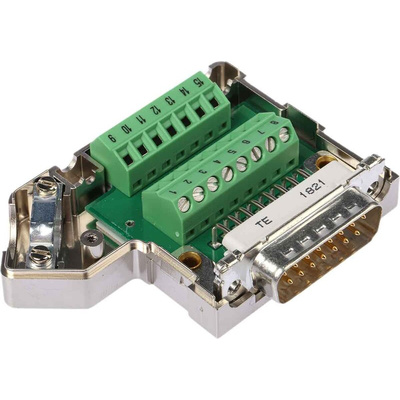

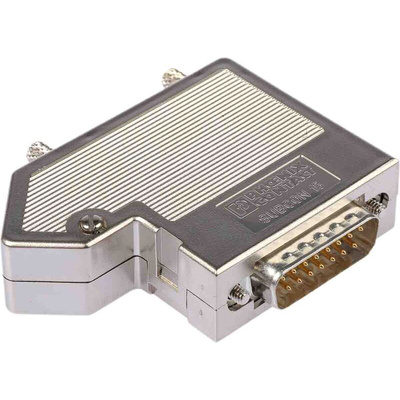

A 15 position, male D-SUB Bus connector from Phoenix Contact that is easy to assemble due to the knurled screws. Designed for universal use, the D-SUB position can be changed through a reversible connection block.

Features and Benefits

• High level of EMC
• One cable entry
• Assemble easily under field conditions
• PCB mounting
• IP20
• Operating temperature of -20°C to +75°C

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Datasheet 2761606
