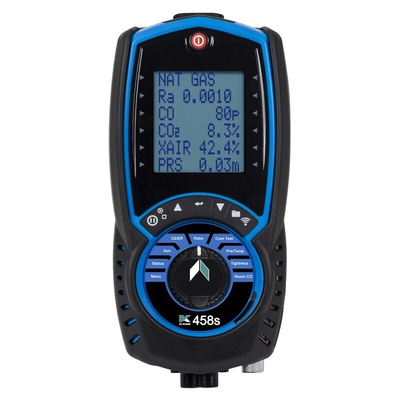

Kane KANE458s Flue Gas Analyser, 0.3%, 5%, 400mbar Max

KANE458s - Flue Gas Analyser with wireless module, direct CO, CO2 & CO sensor over-range protection & 1 psi pressure sensor

Features and benefits

Tests domestic gas, oil, biomass & some commercial appliances. With easy to use rotary dial, 6 line display & USB charger.
Purge pump protection prevents accidental damage to CO sensor. Hydrogen (H2) ready - up to 20% blend.
Applications: Install & Service domestic oil & gas appliances. Safety Checks - CO in rooms or around appliances. Combustion performance checks. Combustion efficiency checks. Flue Draught.
Measures: CO2 direct with an infra-red sensor 0-20%. CO 0-2,000ppm. O2 0-21%. Differential temperature. High accuracy differential pressure meter +/-80mbar.
Fuel Types: Natural Gas, LPG, Wood, pellets, Butane, Light oil, Propane.
Calculates: O2. CO/CO2 ratio. Excess air. Combustion efficiency.

Standards Met

Independently tested by TUV SUD to EN50379. Use for BS7967 & TB 413.

Supplied with:

KANE458s analyser, probe, small carry bag, 2 x 5 filters, pressure connectors, USB charger, quick reference guide & analyser calibration certificate

Datasheet - KANE458s
