932512106 STASAP 5, Hirschmann, ST IP54 Blue Panel Mount 5+PE Heavy Duty Power Connector Socket, Rated At 10A, 250 V, 400 V, Разъем питания

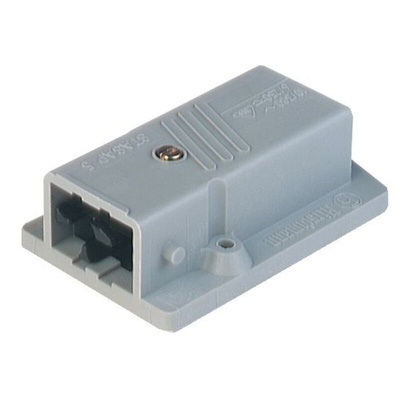

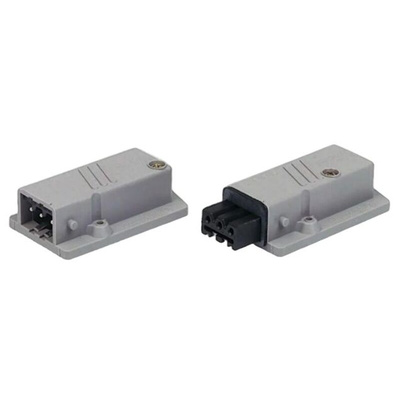

Belden Hirschmann Heavy-Duty Power Connector, Rectangular Receptacle Type, Safety Bracket Attachment - ST Series - 932512106 STASAP 5

Get your electrical parts energised with this heavy-duty power connector from Belden's Hirschmann range. The socket has a 5-pin contact configuration that lets you connect with an energy source of up to 400V AC. Thanks to its broad operating temperature range between -30°C and +90°C, this unit is more than capable of withstanding harsh environments. For added protection, it can take impulse voltages of up to 2.5kV in its stride.

Features & Benefits

• Glass-fibre-reinforced polyamide body is strong, to ensure a long service life
• Compatible with conductors in a broad cross-section range between 0.25 and 1.00mm², so it's highly versatile
• IP54 rating indicates protection against dust and water sprays from any direction.

Applications

• Woodworking facilities
• Construction industry
• Industrial tools

Is this unit compatible with DC voltages?

Yes. This power connector has a DC rating of 250V to allow for use with different energy sources.

Surface mounted connector Data Sheet
