NSYPLM75PG, Schneider Electric Thalassa PLM Series Fibreglass Reinforced Polyester Wall Box, IP66, 747 mm x 536 mm x 300mm

Schneider Electric Thalassa PLM Polyester (PET) Class II Fiberglass Reinforced Wall Box Enclosures.

Schneider Electric range of Thalassa PLM polyester (fibreglass reinforced) Monobloc wall mounting wall box enclosures are suitable for indoor or outdoor use. The lightweight wall boxes have double insulation (Class II) protection and can be used in a large temperature range (960°C withstanding).

Features.

• Large 180° door opening


• IP66 rating meaning the enclosures are dust tight and give protection against powerful jets of water and heavy seas


• Impact resistance: IK10 for plain door version, - IK08 for the glazed door (monobloc).


• Self-extinguishing material and insulator


• 960 ºC test withstanding


• 8 dimensions from 310x215x160mm up to 1056x852x350mm.


• Bosses for fixation points are moulded, inserts included.


• 2 locks with double-bar insert or 1 lock system with 3 action points.


• Version with plain or glazed door.


• Version with metallic or Bakelite mounting plate.


• Suitable for quick installation of DIN rails.


• Lightweight gives an easy installation


• Reversibility for installation right or left door opening


• No electrical contact risk


• Resistance to harsh atmospheres (indoor and outdoor use).


• Halogen free.


• Long life lasting without maintenance.


• Bureau Veritas - IEC62208 enclosure standard.


• UL508A – CAN/CSA-C22.2

Typical Applications.

The Thalassa PLM range of wall box, wall-mounting enclosures are a great choice for using in electrical distribution and control and in public areas.

• Electrical distribution and Control


• Infrastructures and Industry


• Indoor, outdoor and harsh environments


• Public areas thanks to total insulation – safety


• Automation, measurement, distribution and protection


• ATEX version for potentially explosive atmosphere

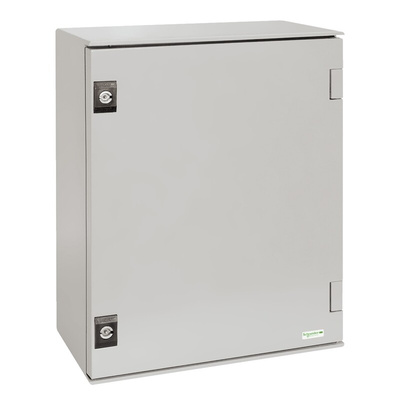

NSYPLM75PG Thalassa PLM Multi-Purpose Compact Wall Box Enclosure.

• Wall mounted.


• One-piece moulded body with notches in the rear Built-in canopy.


• Plain door.


• 3 mm double-bar lock (2 locks supplied).


• 1 x Steel mounting plate is included.


• Hinges and mounting plate are removable.


• Made from Polyester reinforced with fibreglass.


• Colour is Grey RAL 7035.


• IP66 IEC 60529.


• IK10 IEC 62262.


• 960 °C IEC 62208 Fire resistance.

Approvals

UL.

Standards

IEC 62208, NEMA classification 13, NEMA classification 4X.

Supplied with
type":"Supplied with",

1 x Enclosure Wall Box body, 1 x Door, 1 x Mounting Plate, 2 x Locks.
