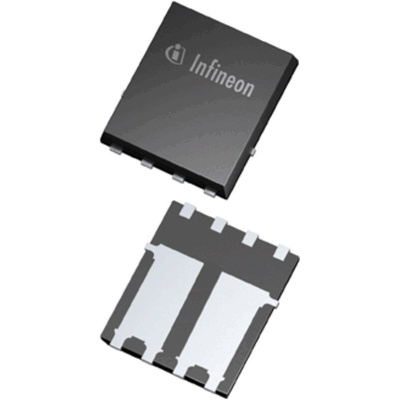

Dual N-Channel MOSFET Transistor & Diode, 20 A, 100 V, 8-Pin SuperSO8 5 x 6 Infineon IPG20N10S4L35ATMA1

The Infineon offers a wide range of 75V-100V N-channel automotive qualified power MOSFETs using the new OptiMOS technology in various packages a RDS(on) range from 1.2mΩ up to 190mΩReducing CO2 emissions of passenger cars is accelerating the 48V board net adoption and therefore the 48V like starter generators (main inverter), battery main switches, DCDC converter as well as 48V auxiliaries. For this emerging market, Infineon is offering a broad portfolio of Automotive 80V and 100V MOSFETs, that are housed in different package types like TOLL (HSOF-8), TOLG (HSOG-8), TOLT (HDSOP-16), SSO8 (TDSON-8) and S308 (TSDSON-8), in order to provide solutions for different power requirements as well as different cooling concepts on electronic control unit (ECU) level. The next to 48V applications the 80V and 100V MOSFETs are also used for example in LED lighting, fuel injection as well as in-vehicle wireless charging.

Dual N-channel Logic Level - Enhancement mode
AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green Product (RoHS compliant)
100% Avalanche tested
Dual Super S08 can replace multiple DPAKs for significant PCB area savings and system level cost reduction.
Bond wire is 200um for up to 20A current
Larger source lead frame connection for wire bonding
Package: PG-TDSON-8-4
Same thermal and electrical performance as a DPAK with the same die size.
Exposed pad provides excellent thermal transfer (varies by die size)
Two N-Channel MOSFETs in one package with 2 isolated lead frames

Datasheet - IPG20N10S4L35ATMA1
