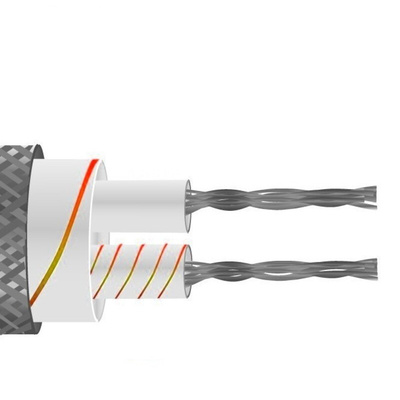

Length, RS PRO Thermocouple Wire, Glass Fibre Sheath Flat Pair, Type U, 7/0.2mm, Screened, 100m

RS PRO IEC Glassfibre Insulated Flat Pair Thermocouple Cable/
Introducing the range of RS PRO Glassfibre Insulated Thermocouple Cables in N and RCU (U) types, ideal for use as general-purpose extension wire in high-temperature environments. The cable has conductors laid flat that are glassfibre insulated and silicone varnished throughout which offers protection and insulation of the wires, and high reliability, especially when being used for a long period of time in challenging environments. The cables have a tolerance class of 2 making this type of cable have a good temperature resistance but not suitable where fluids are present. The thermocouple cables can be used in a wide range of temperatures from –60°C to 350°C (with short periods up to 400°C).
Features and Benefits:/
ulliThis RS PRO glassfibre insulated thermocouple cable is suitable for use as an extension cable in high-temperature environments/liliThe extension cable has an excellent temperature range, from –60°C up to +350°, meaning it can perform in both extremely low and high-temperature environments making it incredibly versatile/liliMade with glassfibre insulation ensures that it can deal with hotspots of up to 400°C for short periods of time that could damage PVC or PFA/liliThe N version of this cable is available in a 10metre length, while the RCU (U) is available in 10, 25, 50 and 100 metre options/liliThis material has good temperature resistance but is not suitable where liquids and moisture ingress are present/liliTolerance class of 2/li/ul
Applications:/
Thermocouple extension wires or cabling is an ideal accessory when working with thermocouple installation. This type of cable can add additional flexibility and versatility to an existing thermocouple and are offered in a wide range of constructions from simple flat laid pairs to screened cables to suit any combination and application they are needed for. Thermocouple extension cables can often be found in:ulliResearch and development/liliThermostats in homes and offices/liliManufacturing, engineering and production environments/li/ul
