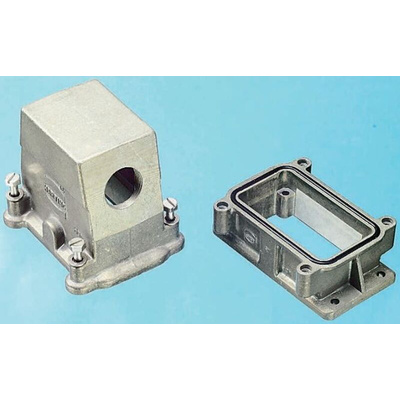

09620400541, HARTING Han B EMC Heavy Duty Power Connector Hood

EMC Shielded Hoods and Housing

Ideal for sensitive interfaces that must be screened from electrical, magnetic or electromagnetic fields.

Metal bodied
Screening loss between -70dB and -80dB
Cable gland available separately, see stock no. 358-3609 and range

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 7 - (Harting Size 16B)

These hoods and housings are compatible with appropriate inserts from the Han D®, DD, E,ES EE, Com, HsB and Modular series. The 'compatibility' table associated with item types 1 to 4 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range. If selecting inserts from the Modular series, please note that four inserts are accommodated within these 16B housings.

Han Size B Hoods/Housing Technical Characteristics

Dimensional Drawing 09 62 040 0541 Hood
