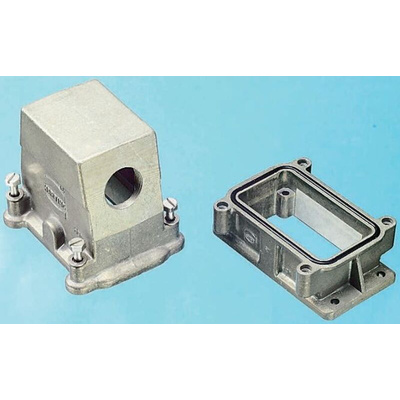

09620100301, HARTING Han B Heavy Duty Power Connector Housing

EMC Shielded Hoods and Housing

Ideal for sensitive interfaces that must be screened from electrical, magnetic or electromagnetic fields.

Metal bodied with screening loss between -70dB and -80dB
Cable gland available separately, see stock no. 358-3609 and range

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 6 - (Harting Size 10B)

These hoods and housings are compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The 'compatibility' table associated with item types 1 and 2 details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Han Size B Hoods/Housing Technical Characteristics

Dimensional Drawing 09 62 010 0301 Bulkhead mounting
