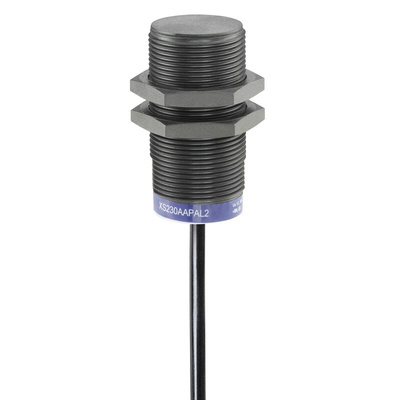

XS230AAMAL10, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 22 mm Detection, Discrete Output, 24 →

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.

Device application Food and beverage
Market segment Pharmaceutical
Sensor name XS2
Sensor design Cylindrical M30
Size 60 mm
Body type Fixed
Detector flush mounting
acceptance
Non flush mountable
Material Plastic
Type of output signal Discrete
Wiring technique 2-wire
[Sn] nominal sensing
distance
22 mm
Discrete output function 1 NO
Output circuit type AC/DC
Electrical connection Cable
Cable length 10 m
