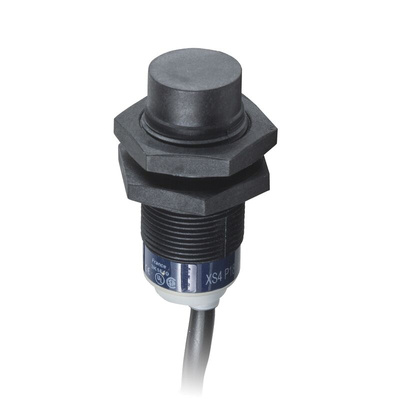

XS4P18AB110L1, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, Analogue Output, 24 → 48

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.

Body type Fixed
Detector flush mounting
acceptance
Non flush mountable
Material Plastic
Type of output signal Analogue
Wiring technique 3-wire
[Sn] nominal sensing
distance
8 mm
Output circuit type DC
Analogue output range 0...10 V
Electrical connection Cable
Cable length 5 m
[Us] rated supply
voltage
24...48 V DC
