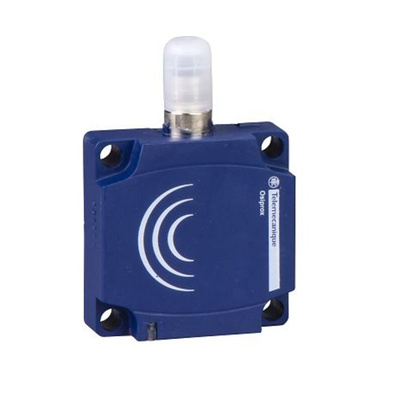

XS7C1A1DAM8, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 15 mm Detection, Discrete Output, 12 → 24 V, IP67

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.

Body type Fixed
Detector flush mounting
acceptance
Flush mountable
Material Plastic
Enclosure material PBT
Type of output signal Discrete
Wiring technique 2-wire
Discrete output function 1 NO
Output circuit type DC
Electrical connection 3 pins M8 male connector
[Us] rated supply
voltage
12...24 V DC with reverse polarity protection
Switching capacity in
mA
1.5...100 mA DC with overload and short-circuit
protection

Datasheet - XS7C1A1DAM8

XS range Catalogue
