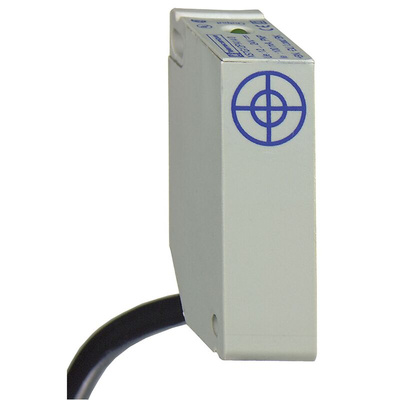

XS7G12PC440, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 2 mm Detection, PNP Output, 12 → 48 V, IP67

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.

Body type Fixed
Enclosure material Plastic
Type of output signal Discrete
Wiring technique 4-wire
[Sn] nominal sensing
distance
2 mm
Discrete output function 1 NO or 1 NC programmable
Discrete output type PNP
Electrical connection Cable
Cable length 2 m
Wire insulation material PVC
[Us] rated supply
voltage
12...48 V DC
Switching capacity in
mA
<= 200 mA with overload and short-circuit protection
