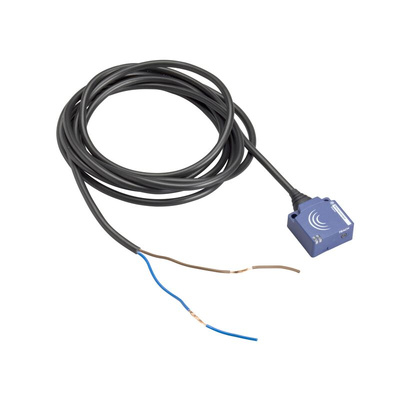

XS8E1A1PAL10, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 15 mm Detection, PNP Output, 12 → 24 V, IP68

The Schneider Electric XS series inductive proximity sensor is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open (NO) or normally closed (NC) output signal is produced.

Body type Fixed
Detector flush mounting
acceptance
Non flush mountable
Material Plastic
Enclosure material PBT
Type of output signal Discrete
Wiring technique 3-wire
[Sn] nominal sensing
distance
10 Mm flush mountable
15 mm non flush mountable
Discrete output function 1 NO
Output circuit type DC

Datasheet - XS8E1A1PAL10

XS range Catalogue

Instruction_Sheet-1
