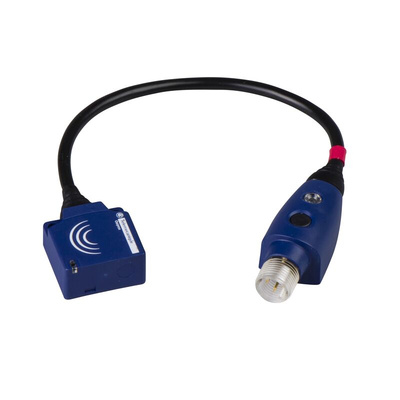

XS9E11RMBL01U20, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 10 mm Detection, Discrete Output, 24 → 240 V, IP67

The Schneider Electric XS series sensors for rotation monitoring. These analogue output proximity sensors are solid-state sensors designed for monitoring displacement. They are not measuring sensors. The operating principle of the sensor is that of a damped oscillator. The degree of damping will depend on the distance of an object from the sensing face. The sensor will sense the distance and produce an output current with a value directly proportional to this distance.

Device application Rotation monitoring
Sensor design Flat form 26 x 26 x 13
Body type Fixed
Detector flush mounting
acceptance
Flush mountable
Material Plastic
Enclosure material PBT
Type of output signal Discrete
Wiring technique 2-wire
Discrete output function 1 NC
Output circuit type AC/DC
Cable length 0.15 m
[Us] rated supply
voltage
24...240 V AC/DC 50/60 Hz
Switching capacity in
mA
5...100 mA AC/DC
