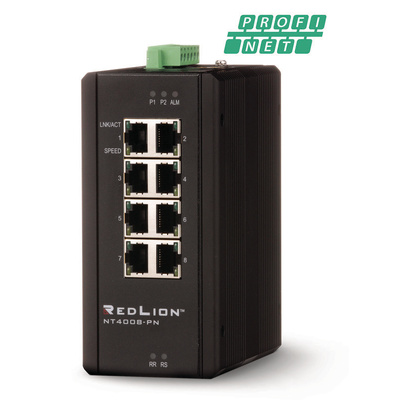

NT-4008-000-PN-M, Red Lion NT-4008 Series DIN Rail Mount Ethernet Switch, 8 RJ45 Ports, 12 → 58V dc

With NT4008 Layer 2 switches, the power of PROFINET real-time data exchange meets the performance and trusted reliability only Red Lion can deliver, helping ensure the success of Industry 4.0 initiatives worldwide. Process more data from more devices in real time with Red Lion’s NT4008 Layer 2 PROFINET switches. Built to effortlessly manage next-generation bandwidths and speeds, NT4008 switches help both simplify and accelerate your Industry 4.0 transition to deliver powerful new competitive advantages.

Designed for performance

NT4008 Layer 2 switches feature standard 10/100/1000 copper Ethernet ports and available dual mode SFP slots on the NT 4008-DM2 series for Fast/Gigabit Ethernet copper and fiber transceivers to meet your current and future needs.

Seamless intergration

Thanks to an embedded PROFINET stack and GDSML file, you can continue using standard PROFINET PLC configuration and management tools.

Manage, Control & Monitor more Profinet

Conformance Class B (CC-B) certification means NT4008 switches can be fully managed, offering real-time data exchange, alarms, and diagnostics through PROFINET tools.

Reduce costly downtime

Data exchange includes quality and asset management, allowing for proactive and predictive maintenance to help minimize equipment downtime.

MRP Certified

Both NT4008 models are available in either MRP manager or MRP client configurations.

Rugged & reliable

IP-30 metal DIN-Rail enclosures, redundant 12–58 VDC power inputs, wide -40 to 75°C operating temperature ranges, and up to 50G shock resistance handle even the most extreme conditions and circumstances.

Ready for any environment

NT4008 switches are UL Class 1, Division 2 and ATEX listed for use in hazardous and ordinary locations, ABS certified for shipboard applications and EN50155 certified for rail applications, ensuring reliable operation in nearly any environment.

Red Lion's NT4008 8-port Gigabit Managed Industrial Ethernet switches are certified to meet PROFINET PNIO v2.34 conformance class B (CC-B), RT Class 1 standards to ensure seamless integration into PROFINET networks using standard PLC configuration and management tools.

•\t8-Port Gigabit Layer 2 Managed Industrial Ethernet Switch
•\tEight 10/100/1000 RJ45 ports
•\t-40 to 75°C Operating Temperature
•\tAuto Sensing 10/100/1000BaseTX, Duplex and MDIX
•\tStore-and-forward Technology
•\t12-58 VDC Dual Power Inputs
•\t4k MAC Addresses
•\t9k byte Jumbo Frame Support
•\tConfigurable Alarm Contact
•\tRugged Industrial IP30 Rackmount Enclosure

Management

•\tWeb Browser Management
•\tCLI: Console, Telnet
•\tRMON (Monitors L1 to L2 Traffic)
•\tsFlow
•\tConfiguration backup/restore
•\tPROFINET GSDML file, PROFINET I/O parameters, I/O cyclic data
•\tMRP Client
•\tDHCP Server/Client/Relay Agent
•\tDHCP Snooping
•\tIGMP v1, v2, v3
•\tSNMP v1, v2c, v3

Diagnostic

•\tPort Mirroring
•\tSyslog
•\tLLDP IEEE 802.1ab Link Layer Discovery Protocol

Network redundancy

•\tPROFINET MRP
•\tRing Protocol: Proprietary Ring & Chain, < 20ms recovery
•\tIEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s, 802.1Q MSTP
•\tLACP/LAG: Static and Dynamic Link Aggregation:
o\tUp to 4 groups per switch
o\tUp to 8 ports per group

Traffic management & qos

•\tPriority: IEEE 802.1p QoS
•\tNumber of queues per port: 8
•\tPolicing, scheduling, and shaping
•\tQoS classification, remarking and translation
•\tQoS assignment via Control Lists
•\tWRED congestion management

VLANS

•\tMax VLANS: 1024
•\tVLAN types: Port-based VLANs:
o\tIEEE 802.1Q Tag based VLANs
o\tIEEE 802.1ad double tagging (Q in Q)

Security

•\tSSH, SSL, HTTPS
•\tSNMP v3
•\tPort Security: IP and MAC-based access control
•\tStorm Control: Multicast/Broadcast/Flooding
•\tPolicy-based access control engine: 128 ACL rules per system
