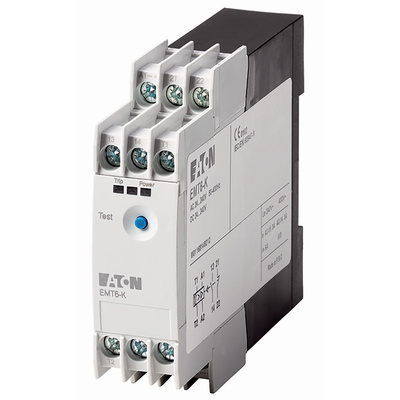

269470 EMT6-K, Eaton Overload Relay 1NO + 1NC, 15 A Contact Rating, 2 W, 24 → 240 Vdc, 1N/O+1N/C, Thermistor Overload, Реле

Eaton Overload Relay, 250V AC Safe Isolation, Screw Terminals - EMT6 Series - 269470 EMT6-K

Don't let overheating trip up your heavy-duty machines – protect them with this overload relay from Eaton. It uses a thermistor sensor to keep a close eye on the temperature of windings, gearboxes and bearings. As soon as equipment gets too hot, a signal to the relay tells it to break the circuit. LEDs on the front of the device make it a cinch to monitor faults. Hook it up to the motor that drives a conveyor, hoist or pump to keep your kit working safely.

Features & Benefits

• Integrated test button makes it a doddle to check it's working correctly
• Snaps onto a top hat DIN rail for speedy mounting
• Screw terminals give you a secure wire connection
• Wide operating temperature range between -25°C and +60°C can handle harsh conditions
• ESD and RFI immunity for reliable operation around people and electromagnetic fields

What wire sizes does this overload relay accept?

For wide compatibility, this overload relay accepts solid and stranded wires in sizes between 20 and 14AWG.

Does this relay need a lot of space?

Not at all. This is a compact choice with dimensions of 84 (L) x 23 (W) x 104mm (D).

Note

Eaton formerly known as Moeller
