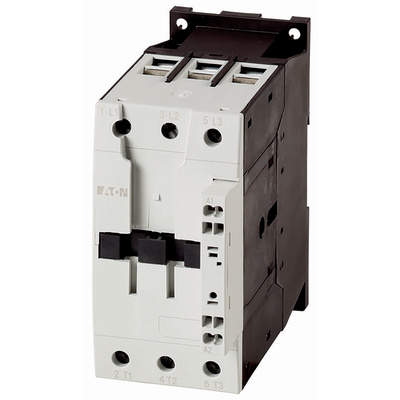

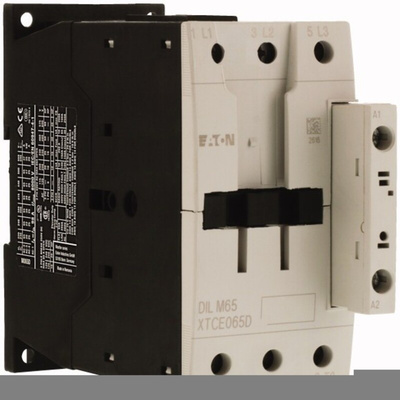

278039 DILMC65(RDC24), Eaton Contactor, 380400 V Coil, 3-Pole, 170 A, 30 kW

Eaton Contactor, 3 Poles, Spring-Loaded Terminals - DILM Series - 278039 DILMC65(RDC24)

Control your switching functions with this 3-pole contactor from Eaton. A coil voltage between 380 and 400V makes it suitable for use in medium-duty applications. The spring-loaded terminals ensure a secure electrical connection for reliable switching. Thanks to an operating frequency of 5000 mechanical operations per hour, you can rest assured you'll get efficient performance in heavy-duty environments. The unit is protected against short circuits to reduce the risk of electrical damage to your equipment. An integrated suppressor circuit minimises wear from high voltage spikes to prolong the contactor's service life. You can use contactors like this with motors, lighting systems and capacitors.

Features & Benefits

• Touch-proof housing for enhanced electrical safety
• Compact dimensions of 115 (L) x 77 (W) x 147mm (D) for easy installation in tight spaces
• Wide operating temperature range between -25°C and +60°C for use in harsh conditions
• Rated impulse withstand voltage of 8000V AC to handle large surges

How long will this contactor last?

This contactor has a robust mechanical lifespan of 10 million operations, so you can be sure of long-term performance.

Note

Eaton formerly known as Moeller

Datasheet - 278039

Instruction Sheet - DILM
