RS PRO Square Wall Mounted, Window Mounted Extractor Fan, 266L/s, 60dB, External 2 Speed Reversible On/Off Control,

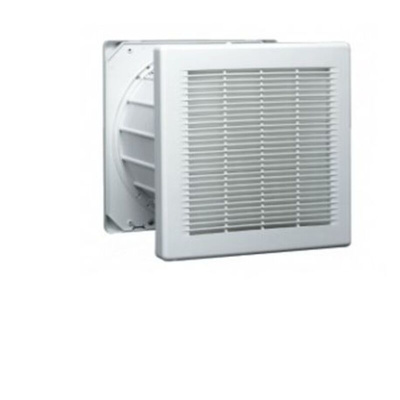

RS PRO Commercial Extractor Fan with Automatic Shutters

RS PRO is proud to introduce a range of extractor fans with automatic shutters designed for use in commercial applications. These extractor fans are made from the impact-resistant ABS for durability and strength, include a motor fitted with thermal overload protection, and are suitable for panel/wall mounting or window mounting. Installation is very simple and the job and carried by engineers or DIY enthusiasts.

Why would you choose commercial extractor fans?

The primary purpose of the extractor fans is to provide ventilation for fumes, smells, and steam vitally important to any commercial business such as pubs, hotels, and restaurants. They ensure staff has a better working environment and customers have an enjoyable experience while socialising.

Key Features

These fans are compatible with an external 2 speed reversible on/off controller available separately and we can also supply window kits for both variants.

Features and Benefits

• Axial extractor fan


• Automatic shutters- vented grille


• Simple installation


• ABS for strength and durability


• Impact resistant


• Gloss white


• Motor fitted with thermal overload protection


• Wall or window mounting with appropriate window accessory kit

Specification

• Double Insulated, class II motor fitted with thermal protection


• IP44 rated


• Meets the requirements of Building Regulation Document F


• Panel Mount Airflow: 259l/sec, 267l/sec (Model dependent)


• Window/Wall Mount Airflow: 190l/sec,415l/sec (Model dependent)


• Rated Voltage 220-240 V-50 Hz


• Rated Wattage 90 W

RS PRO Extractor Fan Variants

• Automatic shutter fan, 230 mm, RS stock no: 221-3563


• Automatic shutter fan, 300 mm, RS stock no: 221-3565

Compatible Accessories

• Fan speed controller; RS stock no: 221-3569


• Window Kit for 230 mm; RS stock no: 221-3566


• Window Kit for 300 mm; RS stock no: 221-3568

Applications

Suitable for commercial applications such as kitchen and bathrooms in;

• Public houses


• Hotels


• Restaurants


• Commercial offices


• Schools


• Shops


• Factories

Why would you choose RS PRO for Extractor Fans?

Our range of extractor fans has been selected for their high-quality and performance. We understand that quality is of great importance and have ensured that all RS PRO extractor fans are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.

Approvals

DEMKO Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives

RS PRO Datasheet
