RS PRO 125A Bolted Tag Fuse, 120 V dc, 240 V ac, 59mm

RS PRO LSA Series Bolted Tag Fuses

Introducing from RS PRO the LSA series bolted tag fuses. These fuses are designed to protect electrical circuits when overcurrent or short circuits are detected. They do this via a weak sacrificial link that breaks, protecting the electrical circuitry.

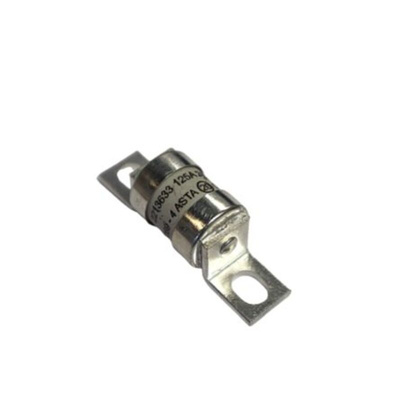

Upon inspection, each fuse is housed within a fuse holder with a tag at either end with mounting through-holes. The RS PRO LSA series offer a voltage rating of 120 V dc, 240 Vac, and 125 A current rating. Installation is quick and easy and complies with the fuse standard IEC 60269-4/BS 88-4.

Why is a fuse important?

The main purpose of a fuse is to offer circuit protection by acting as the weakest link in the system. It is designed to fail when overloads occur. It’s safer and cheaper to replace a solitary fuse than to replace electrical components within the system.

Features and Benefits

• Protection during overload and shorts


• Fuses feature tags with through-holes


• Breaking Capacities 100kA a.c.,100kA d.c.


• Low voltage fuse


• Type: Bolted tag fuse


• Application Category: AR


• Standards Met: IEC 60269-4/BS88-4

General Specification

• Voltage Rating: 120 V dc, 240 V ac


• Current Rating: 125 A


• Tag Width: 25.4 mm


• Overall Length: 85 mm


• Body Diameter: 41.5 mm


• Body Length: 32.6 mm


• Tag Orientation: Offset

Applications

• Machinery


• Industrial Buildings


• Distribution Network
