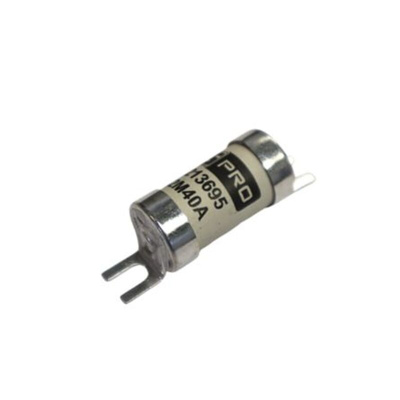

RS PRO 32 A, 40 A Slotted Tag Fuse, A1, 250 V dc, 415 V ac, 44.5mm

RS PRO NIT Series Slotted Tag Fuses – Motor Rated

Introducing from RS PRO the NIT series slotted tag fuses. These dual-rated fuses are used in motor circuits that require a higher rating and protection when overcurrent or surges are detected. The NIT fuses have a dual current rating and are recognised with the letter ’M’ for continuous current and the operational characteristic rating.

Upon inspection, each fuse is housed within a fuse holder with a tag at either end with mounting through-holes. The RS PRO NIT series offer a voltage rating of 250 V dc, 415 V ac with various current ratings. Installation is quick and easy and complies with the fuse standard IEC 60269-2/BS 88-2.

Why is a fuse important?

The main purpose of a fuse is to offer circuit protection by acting as the weakest link in the system. It is designed to fail when overloads occur. It’s safer and cheaper to replace a solitary fuse than to replace electrical components within the system.

Features and Benefits

• Type: Slotted tag fuse


• Motor rated fuse-links


• Protection during overload and surges


• Breaking Capacities 80kA a.c.,40kA d.c.


• Fuse Size: A1


• Application Category: gG/gM


• Standards Met: IEC 60269-2/BS88-2

General Specification

• Voltage Rating: 250 V dc, 415 V ac


• Current Rating: 32A, 40A / 32A, 50A / 32A, 63A


• Tag Width: 9.5 mm


• Overall Length: 56 mm


• Body Diameter: 12.7 mm


• Body Length: 33 mm

Applications

• Motor Starting


• Industrial Installation
