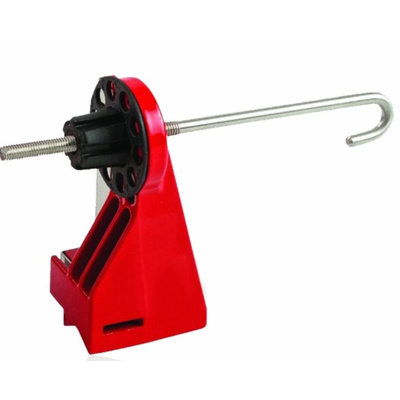

RS PRO Red 1-Lock Brass, Stainless Steel Ball Valve Lockout

RS PRO Ball Valve Lockout

When it comes to ball valve locks RS PRO has the ideal solution for your workplace. On offer is this extremely useful lockout device used to isolate a ball valve handle and restrict personnel from inadvertently turning the handle to the ’On’ position, while maintenance and repairs are being carried out.

How does it work?

Make sure you have adequate space to install the device. Turn the valve handle to the fully closed position then place the ball valve lockout on the pipe and secure with a clamp. Twist the black wheel to engage the hook which grips and secures the valve handle in place. Add a safety padlock and tag to show who is currently working on the system.

Features and Benefits

• Safety device


• Adjustable design to fit various ball valve sizes


• Metal rod locks handle in place


• Temperature range: -40 °C to 90 °C


• Easy to install

Materials

• Die-cast metal body


• Colour: Red


• Polyamide 6/6 adjustment wheel


• Stainless steel rivets and slider plate


• Stainless steel pipe clamps

Dimensions

• 39.5 mm x 55.9 mm x 110. 4 mm

Things to consider

RS PRO offers a wide selection of hasps, tags, and safety padlocks compatible with this lockout. Browse our extensive range using the improved filters to find your ideal solution.

Application

• Servicing and Maintenance
