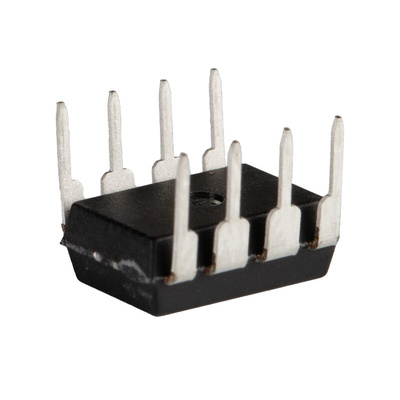

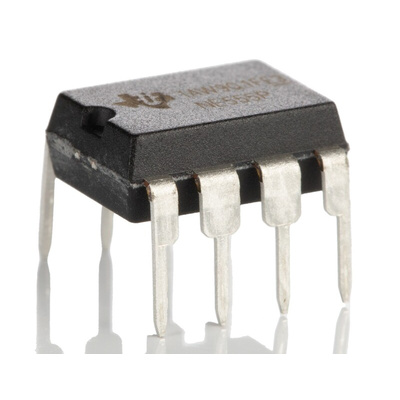

Texas Instruments NE555P, Precision Timer, 8-Pin PDIP

555 Timer, Texas Instruments

A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.

The NE555P is a precise timing circuit that produces accurate time delays or oscillation. Within the time delay, the timed interval is controlled by an external resistor and an external capacitor.

Features

Timing from microseconds to hours

Adjustable duty cycle

A stable or monostable operation

Applications

Consumer Electronics

Aerospace

Clock and Timing

Military

Embedded Design & Development

Timers/Timing Generators

NE555 Data Sheet
