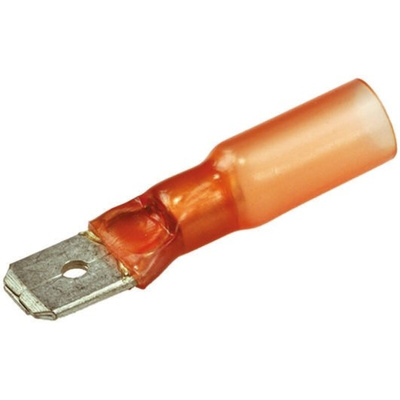

B-106-4631, TE Connectivity Duraseal Red Insulated Female Spade Connector, Tab, 6.35 x 0.8mm Tab Size, 0.3mm² to 0.9mm², Обжимной контакт

Waterproof Duraseal terminals

Crimp terminals pre-installed in a heat shrinkable sleeve coated with a hot melt adhesive to make them waterproof.
The connection, insulation and waterproofing are carried out through shrinking after crimping.

TEConnectivity Crimp Receptacles

The TEConnectivity DuraSeal red insulated crimp receptacle is designed to terminate a tin-plated or bare copper stranded wire having insulation rated or at least 75C to a blade terminal. It will provide a splash-proof and strain relief connection.

Features and Benefits:

• Operating temperature ranges between -55°C and 125°C
• Heat-shrinkable
• Blade terminal: tin plated brass
• Insulated receptacle
• Gender: Male
• Free hanging mount

Applications:

• Tooling
• Installation

Certifications:

• UL approved

Duraseal Heatshrinkable

TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.

• The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
• Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

Approvals

UL Listed
