RS PRO Hot Galvanised Steel Beam Clamp, Fits Channel Size 21 x 41mm

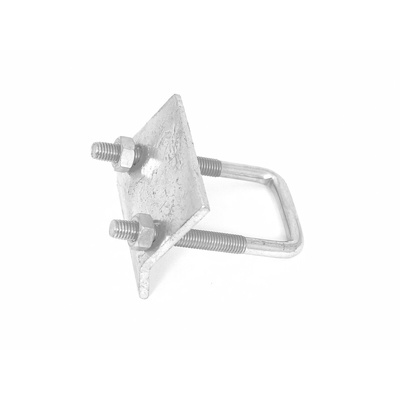

RS PRO Beam Clamp with U Bolt

When it comes to beam clamps consider RS PRO. Our U bolt beam clamp is made from steel and hot-dipped galvanised for the ultimate strength and corrosion protection. This beam clamp is designed to fit a 41 mm channel or strut support system to beam flanges. The beam clamp has 2 pre-drilled holes complete with a 'U' bolt and two hexagon full nuts perfect for internal and external applications.

What is it used for?

A ’U’ bolt beam clamp is a structural clamping system that fits under flanges and is secured in place via the hexagon nuts. Beam clamps remove the need for welding and drilling and are a classic way of securing channel-strut systems to the ceiling ready to be used as a rigging device.

Also known as;

• Girder clamp


• C Clamps


• Flange beam clamp

Features and Benefits

• U bolt beam clamp


• Made of steel


• Designed to fit channel/strut support systems


• 2 hexagon nuts


• All parts hot dipped galvanised (HDG)


• Resistant to corrosion


• Ideal for internal and external applications

Specification

• Dimensions: H.80 mm x W.70 mm


• U bolt 41 mm


• Weight: 0.360g

Caution

• Always use 2 clamps per fixing

Application

Beam clamps are commonly used in material handling processes both indoor and outdoor. Typical application includes;

• Lifting and Support


• Rigging
