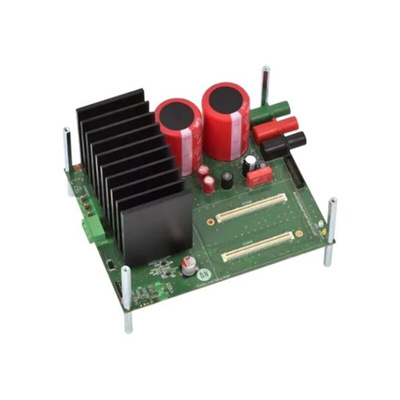

onsemi Evaluation Board for SECO-MDK-4KW-65SPM31-GEVB for NFAM5065L4B

2216770
Номер производителя: SECO-MDK-4KW-65SPM31-GEVBПроизводитель: onsemi
Цена за шт.
99617.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

SECO-MDK-4KW-65SPM31-GEVB Motor Development Kit (MDK) 4 kW Board with Intelligent Power Module SPM31 650 V

The SECO−MDK−4KW−65SPM31−GEVB is a development board for three−phase motor drives, part of the Motor Development Kit (MDK). The board features the NFAM5065L4B Intelligent Power Module in a DIP39 package and is rated for 400 Vdc input, delivering continuous power in excess of 1 kW, with the capability of delivering up to 4 kW power for a short period.

The board is fully compatible with the Universal Controller Board (UCB), based on the Xilinx Zynq−7000 SoC, which embeds FPGA logic and two Arm® Cortex®−A9 processors. As such, the system is fit for high−end control strategies and enables operation of a variety of motor technologies (AC induction motor, PMSM, BLDC, etc.).

Features and Benefits

  • 4 kW Motor Control Solution Supplied with up to 410 Vdc

  • Compatible with the Universal Controller Board (UCB) FPGA−controller Based on Xilinx Zynq−7000 SoC

  • Out of the Box Use Cases for FOC and V/F Control with Graphical User Interface (GUI)

  • Highly Integrated Power Module NFAM5065L4B 650 V/50 A High Voltage 3−phase Inverter in a DIP39 Package

  • DC/DC Converter Producing Auxiliary Power Supply 15 Vdc – Non−isolated Buck Converter using NCP1063, DC/DC Converter Producing Auxiliary Power Supply 5 Vdc – Non−isolated Buck Converter using FAN8303, and LDO Producing Auxiliary Power Supply 3.3 Vdc – using NCP718

  • Three−phase Current Measurement using 3 x NCS20166b Operational Amplifiers

  • Three−phase Inverter Voltage and DC−Link Voltage Measurement – using Resistive Voltage Divider Circuit

  • 512 kB EEPROM I2C – using CAT24C512

  • Encoder Interface Compatible with either 3−HALL Sensors 1 Channel Quadrature Encoder

  • Temperature Sensing via Build in Thermistor

  • Over Current Protection using NCS2250 Comparator

Applications

  • White Goods

  • Industrial Fans

  • Industrial Automation

  • Industrial Motor Control

Техническая спецификация
pdfDatasheet - SECO-MDK-4KW-65SPM31-GEVB
Для использования с:
NFAM5065L4B
Классификация комплекта:
Комплект для разработки
Название комплекта:
Оценочная плата
Рекомендуемое устройство:
SECO-MDK-4KW-65SPM31-GEVB
