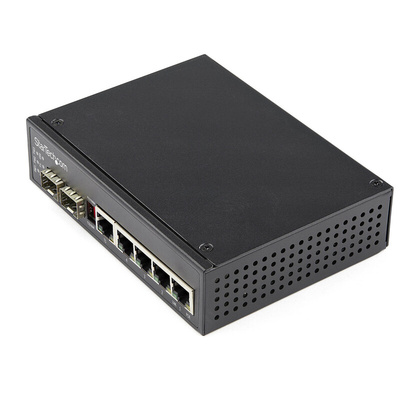

StarTech.com IES1G52UPDIN, Unmanaged 6 Port Gigabit Switch With PoE

StarTech.com Unmanaged Gigabit Switch, 6 Ports - IES1G52UPDIN

Need a multifunctional network device with ports that can deliver data and power at the same time? This 6-port ethernet switch from StarTech.com has four dedicated power over ethernet (PoE) ports that can support network devices while providing data with the same cable. For added versatility, it has a port for fibre-optic cable connectivity and another that's switchable between RJ45 and open small form-factor pluggable (SFP) options. It's useful for network deployment in commercial and industrial applications. You'll find it used in the solar industry where minimal energy consumption is needed.

Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable (IES1G52UPDIN)

Features and Benefits

Simple installationSimple to install as it comes with a quick-start manual and a mounting kit.
Compact designBuilt to fit into small spaces thanks to its compact dimensions of 142 (length) x 105 (width) x 36mm (height).

Applications

• Five LED (light-emitting diode) indicators to show when there's power and connection in the ports
• Wide operating temperature range of -40°C to +75°C for use in demanding applications
• Light weight of 0.492kg for easy handling

With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

• Cameras
• Sensors
• Wi-Fi access points
• Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
• 500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

FAQs

What is Mean Time Between Failures (MTBF)?MTBF is the average time that a piece of equipment will operate without breaking or failing. This device has an MTBF of 500,000 hours, so it has a long lifespan.

Datasheet - IES1G52UPDIN
