StarTech.com IESC1G50UP, Unmanaged 5 Port Gigabit Switch With PoE

StarTech.com Gigabit PoE Switch, 5 Ports - IESC1G50UP

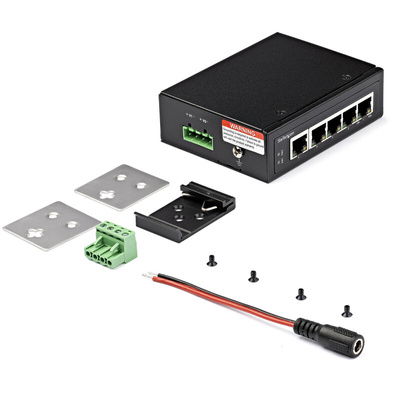

Use this StarTech.com industrial PoE (power over ethernet) switch to run several devices over the same ethernet cable. It's useful for powering equipment mounted high on walls or far away from electrical sockets, like security cameras and wireless network repeaters. The switch conveniently includes all the hardware you need for DIN rail or wall mounting. You also get a unique barrel power adaptor that's compatible with a standard wall adaptor, so there's no need for any hardwiring.

Features and Benefits

Resilient and robustThis ethernet switch is built for harsh conditions as it's vibration and shock-resistant. It's also IP (ingress protection) 30 rated, meaning it's protected from small tools and wires larger than 2.5 mm.
Plug in and goAs this device is unmanaged, it doesn't need remote configuration, management or specialised engineering skills to operate.

Applications

• Withstands extreme temperatures ranging from -40°C to +75°C
• Aluminium housing provides durable protection for internal wiring

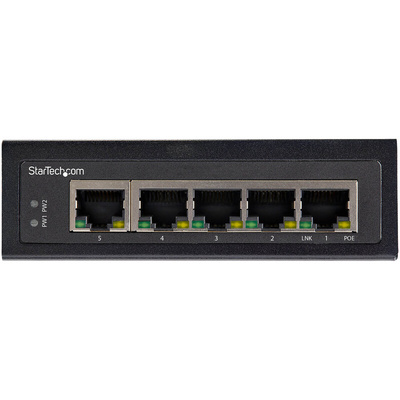

• Five ports to accept various devices
• Supports high-speed data transmission

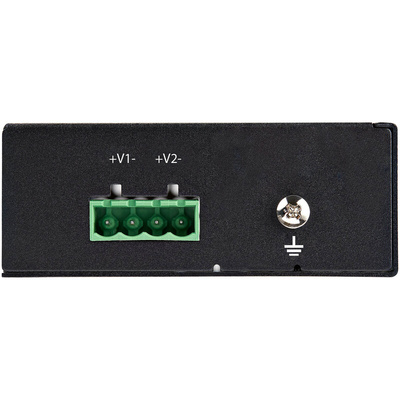

• Can be wired to a terminal block for improved versatility

The Startech industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs. This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50C, for long-term reliability.

FAQs

It is vibration, shock, and free-fall standard testing
It has IP-30 housing

What ethernet cabling can you use with this PoE switch?You should use Cat 5e or higher ethernet cabling with this device.

Datasheet - IESC1G50UP
