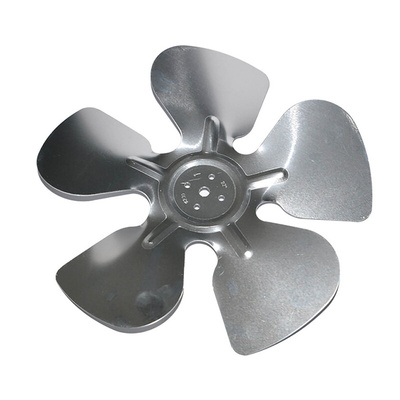

RS PRO 200mm Impeller Blade, 22° Blade Angle

RS PRO Impeller Blades

Introducing a range of Impeller blades from RS PRO. These fan blades are made from aluminium, have a blade gauge of 0.8 ±0.03 mm, and set screw on motor shaft connection. These impeller blades are designed for use with RS PRO AC fan motors, commonly used in motor drive & control applications, and are available with a choice in fan class and impeller dimensions.

Features and Benefits

• Axial Impeller


• Material: Aluminium


• Connection: Set screw on motor shaft connection


• Airflow Direction: Toward motor


• Blade Gauge: 0.8 ±0.03 mm

RS PRO Impeller Blades Variants

• Blade dia. 154 mm, Blade ratio 22 ° - RS stock no: 221-7676


• Blade dia. 200 mm, Blade ratio 22 °- RS stock no: 221-7677


• Blade dia. 200 mm, Blade ratio 28 °- RS stock no: 221-7678


• Blade dia. 200 mm, Blade ratio 34 °- RS stock no: 221-7679


• Blade dia. 230 mm, Blade ratio 22 °- RS stock no: 221-7680


• Blade dia. 230 mm, Blade ratio 28 °- RS stock no: 221-7681


• Blade dia. 250 mm, Blade ratio 22 °- RS stock no: 221-7682


• Blade dia. 250 mm, Blade ratio 28 °- RS stock no: 221-7683


• Blade dia. 250 mm, Blade ratio 34 °- RS stock no: 221-7684

Things to consider

RS PRO offers a wide selection of AC fan motors and brackets compatible with these axial blades. Browse our range using the improved filters to find your ideal solution.

Application

• Motor Drive & Control


• Low-torque applications
