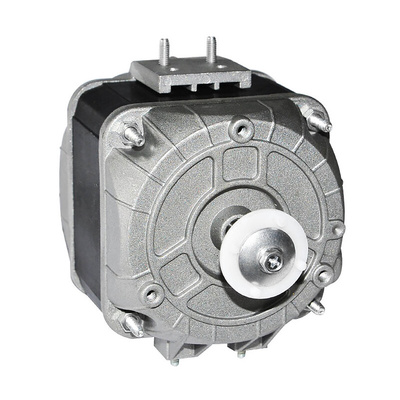

RS PRO 38W Fan Motor for use with RS PRO Impellers and Motor Brackets

RS PRO AC Motors

RS PRO is proud to introduce a series of AC motors designed for use in motor drive and control applications. These electric square shaded-pole motors offer a counter-clockwise rotation with 1300 rpm rotational speed and use alternating current with 220 to 240 V supply voltage. Each AC motor is constructed with die-cast aluminium housing, dual ball bearings and supplied with three wire leads 500 mm in length.

Features and Benefits

• Square Shaded-pole Motor


• Counter clockwise rotation


• Robust and maintenance-free


• Multi-function external and internal rotors

Specification

• Housing: Die cast aluminium


• Electrical connection: 3 x 0.5 mm with brass Lead tips


• AC Motor: Shaded pole AC, Class B insulation


• IP Rating: IP42


• Dielectric Strength: 500VAC/min <1mA


• Rated Voltage: 220-240 V


• Operating Temperature: -30 °C ∼ +60 °C


• Insulation Resistance: ≥10M Ohm @ 500 VDC


• VDE Certification

RS PRO AC Motors Variants

• Rated Input Power: 33 W – RS stock no: 221-7686


• Rated Input Power: 38 W – RS stock no: 221-7687


• Rated Input Power: 40 W – RS stock no: 221-7670


• Rated Input Power: 70 W – RS stock no: 221-7671


• Rated Input Power: 73 W – RS stock no: 221-7672


• Rated Input Power: 95 W – RS stock no: 221-7674

Things to consider

RS PRO offers a wide selection of fan blades and brackets compatible with these AC motors. Browse our range using the improved filters to find your ideal solution.

Application

• Motor Drive & Control


• Low-torque applications

RS PRO Datasheet
