LED400-04-03, Moflash LED400 Series Blue Multiple Effect Beacon, 70 → 265 V, Surface Mount, LED Bulb, IP65

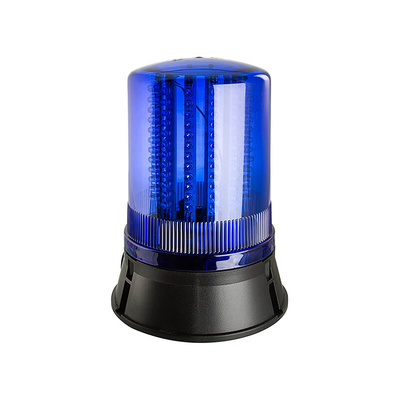

Moflash Blue Multifunction LED Beacon, 70 to 265V AC, 520g - LED400 Series - LED400-04-03

This Moflash blue LED beacon effectively alerts people to possible dangers in security, process control and other industrial applications. The versatile component has four light effects to choose from, including a static mode, a flashing mode and two rotating modes. For enhanced convenience, the static mode can be controlled remotely using a PLC (programmable logic controller) or control panel. This beacon has a wide operating voltage range of 70 to 265V AC for use in a wide variety of setups.

Features & Benefits

• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
• ABS (acrylonitrile butadiene styrene) base and PC (polycarbonate) lens are UV-stable and impact-resistant

Applications

• Law enforcement vehicles
• Automated packaging and assembly lines
• Marine shipyards

How fast does the light rotate in rotating mode?

When the beacon is in rotating mode, the light rotates at a fast rate of 140rpm (rotations per minute), producing an urgent signal that can be seen from all directions.

Datasheet - LED400-04-03

2222010_Instruction Sheet_en

Moflash Signalling Product Range
