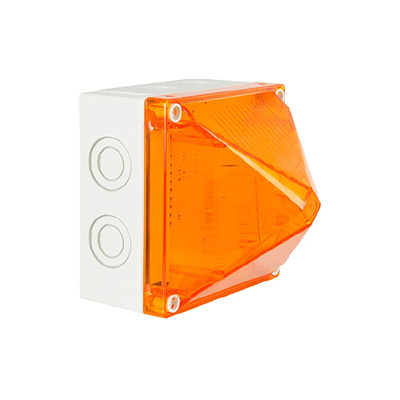

LED700-05-01, Moflash LED700 Series Amber Multiple Effect Beacon, 85 → 280 V, Surface Mount, LED Bulb, IP66, IP67

Moflash Amber LED Beacon, Multiple Light Effects, 60mA - LED700 Series - LED700-05-01

Use this LED beacon from Moflash to provide an effective visual alert in your workplace. This component's amber-coloured lens makes it ideal for a caution signal or for indicating a change in machine status. The unit's ABS (acrylonitrile butadiene styrene) material provides durability and impact resistance for use in harsh environments. Its 64 surface-mounted LED bulbs emit a light output of 120° above the vertical axis to ensure good visibility.

Features & Benefits

• Low current consumption of 60mA at 230V AC for energy efficiency
• Wide supply voltage range of 85 to 280V AC or 40 to 380V DC for use in most electrical set-ups
• Wide operating temperature range of -25°C to +65°C for use in cold and hot environments
• UV-stable polycarbonate (PC) lens for use in direct sunlight

Applications

• Process and packaging plants
• Marine industries

How many alarm stages does this beacon have?

This beacon has three pre-selectable alarm stages, including a flashing mode at 60FPM (flashes per minute) or 120FPM and a static mode. You can choose between these stages via a jumper link on the printed circuit board (PCB).

Datasheet - LED700-05-01

Installation sheet - LED700-05-01

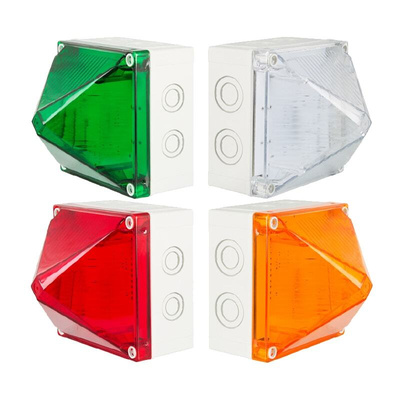

Moflash Signalling Product Range
