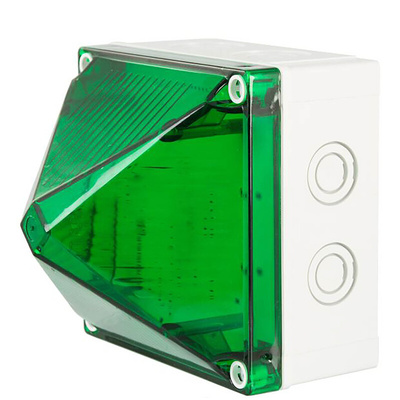

LED700-05-04, Moflash LED700 Series Green Multiple Effect Beacon, 85 → 280 V, Surface Mount, LED Bulb, IP66, IP67

Moflash Multiple Effect Green LED Beacon, 85V to 280V AC, 40 to 380V DC - LED700 Series - LED700-05-04

Indicate that traffic can move or operating conditions are normal with this green LED beacon from Moflash. For versatility, you can set it to a steady mode or two different flashing modes using the jumper link on the PCB (printed circuit board). This unit features conduit knockouts on its sides that accommodate cable glands ranging in size from M16 to M32 for easy installation. The in-base termination design means wiring is protected inside the unit, improving electrical safety.

Features & Benefits

• Durable polycarbonate (PC) lens and base withstand UV rays for outdoor use
• Suitable for surface or wall mounting for versatile installation
• Wide operating temperature range of -25°C to +65°C for use in demanding environments

Applications

• Manufacturing plants
• Traffic applications
• Control panels
• Automation industry
• Marine industry

Can I use this beacon in damp environments?

Yes, this unit has a combined IP66 (ingress protection) and IP67 rating, which means it's protected against strong jets of water and contamination from dust. It can also withstand immersion in 1m of water for up to 30 minutes.

Datasheet - LED700-05-04

Installation Sheet - LED700-05-04

Moflash Signalling Product Range
