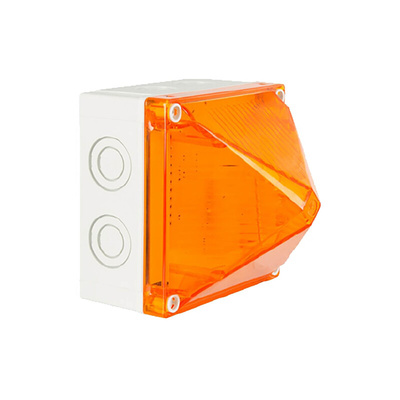

LED701-02-01, Moflash LED701 Series Amber Multiple Effect Beacon, 20 → 30 V, Surface Mount, LED Bulb

The Moflash LED701/700 series is suitable for Industrial & Marine signalling applications where a more powerful visual signal is required. The unit incorporates 64 off extra bright, long life LED’s and offers a high output low maintenance signalling solution. These beacons have three pre-selectable stages of alarm. Flashing mode at either 60 or 120 FPM and a continuous (static) mode. These can be pre-set by a jumper link on the PCB. The design allows for a third wire control that can switch from continuous mode to pre-set flashing mode. Termination is inside the enclosure via conduit knockouts on the sides of the unit and can incorporate M16 up to M32 cable glands.

Continuously rated
High light output
Suitable for surface or wall mounting
120° prime light output above the vertical axis
High ambient operating temperature
Dual Colour LED option
Ambient Light Detection Option – Longer Life
Dustproof and weatherproof
